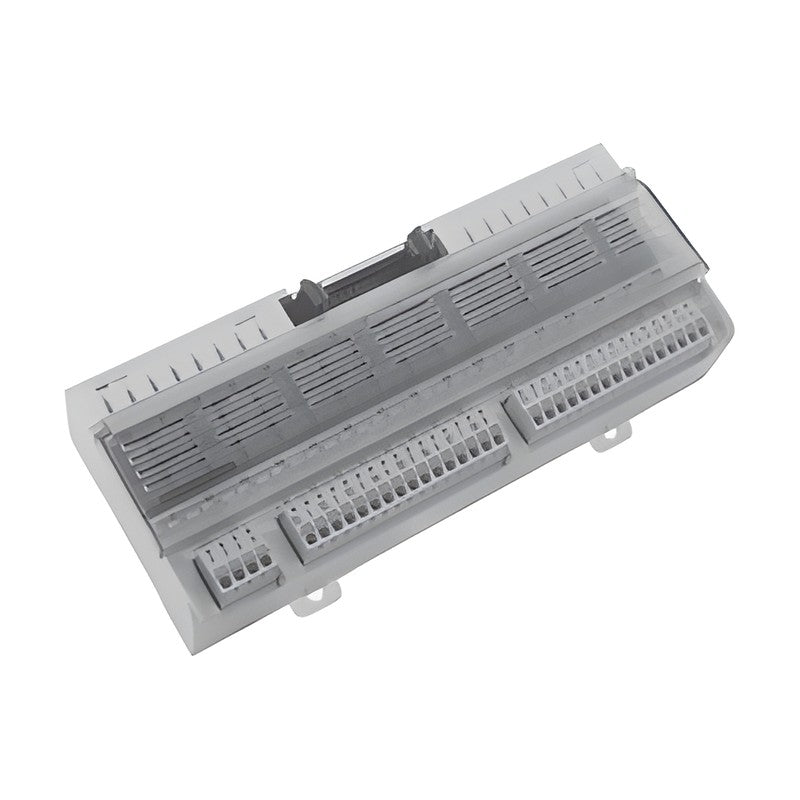

Samwon ACT R16G-EF 16-Point Relay Terminal, Push-In Detachable, OMRON G6B

16-point relay terminal with OMRON G6B-1174P-FD-US relays and detachable push-type screwless load-side terminal blocks.

Key features

Push-type screwless terminals reduce wiring time compared with ring or fork terminals
Load-side terminal block detaches for replacement without rewiring
OMRON G6B-1174P-FD-US long-life relays with AgSnIn contacts
Coil-side surge absorption circuit
Contact side can be commoned in 4-point units with short bars (4 pcs included)

Specifications

Relay	OMRON G6B-1174P-FD-US DC24V (SPST-NO, 1a)
Contact Rating	5 A 250 V AC / 5 A 30 V DC (resistive)
Coil Voltage	24 V DC
Points	16 (1a x 16)
Contact Common	Individual common (4P short bar included)
Coil-Side Interface	Connector MIL-C-83503 20-pin
Contact-Side Interface	Push-type terminal block, 3.81 mm pitch
Dimensions (W x D)	173.5 x 70.0 mm
Mounting	DIN rail (channel)
Applicable Wire	Solid 0.5-1.5 mm2; stranded AWG16-22 / 1.5 mm2 (ferrule required)

R16G-NC-EF		Coil Common: NPN (+COM)
R16G-PC-EF		Coil Common: PNP (-COM)

Relay Interface TerminalsSamwon ACT

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R16G-EF 16-Point Relay Terminal, Push-In Detachable, OMRON G6B

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (2)

R16G-NC-EF, R16G-PC-EF
