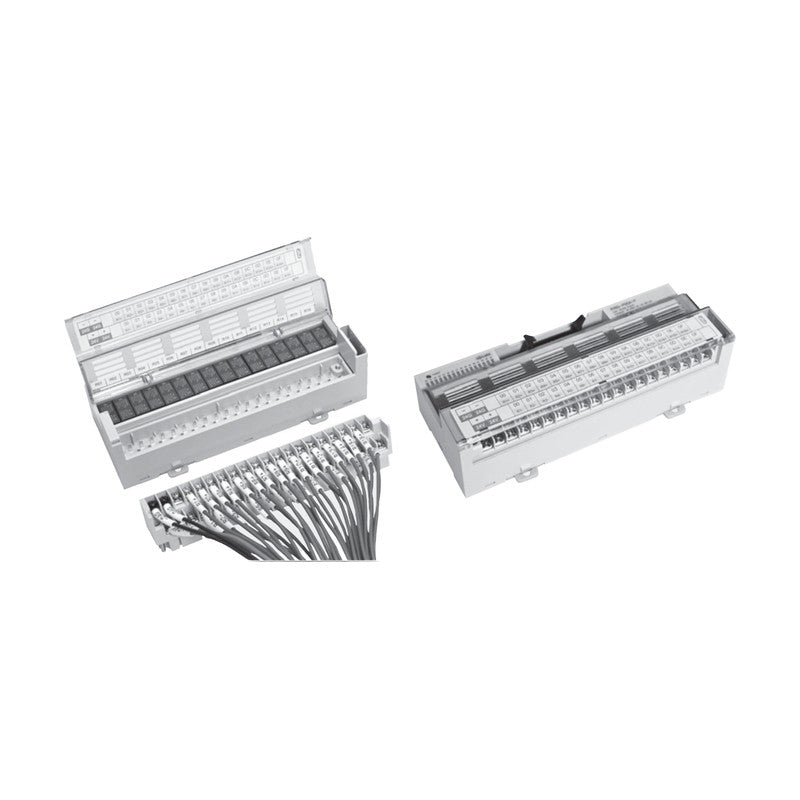

Samwon ACT R16G-F 16-Point Relay Terminal, Detachable Terminal, OMRON G6B

16-point relay terminal with OMRON G6B-1174P-FD-US relays and a detachable load-side terminal block for easy maintenance.

Key features

Load-side terminal block can be detached so wiring stays in place when the relay terminal is replaced
OMRON G6B-1174P-FD-US relays with AgSnIn contacts resistant to surge
Relay operation LEDs and channel mounting
Gold-plated contacts on the detachable terminal block for reliable connection
Enclosed case design prevents exposed PCB parts for electrical safety

Specifications

Relay	OMRON G6B-1174P-FD-US DC24V (SPST-NO, 1a)
Contact Rating	5 A 250 V AC / 5 A 30 V DC (resistive)
Coil Voltage	24 V DC
Points	16 (1a x 16)
Contact Common	Individual common
Coil-Side Interface	Connector MIL-C-83503 20-pin
Contact-Side Interface	Screw terminal block, 7.4 mm pitch, 40 poles
Terminal Screw	M3 x 6L
Dimensions (W x D)	174.0 x 70.0 mm
Mounting	DIN rail (channel)

R16G-NS5A-F		Coil Common: NPN (+COM)
R16G-PS5A-F		Coil Common: PNP (-COM)

Relay Interface TerminalsSamwon ACT

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R16G-F 16-Point Relay Terminal, Detachable Terminal, OMRON G6B

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (2)

R16G-NS5A-F, R16G-PS5A-F
