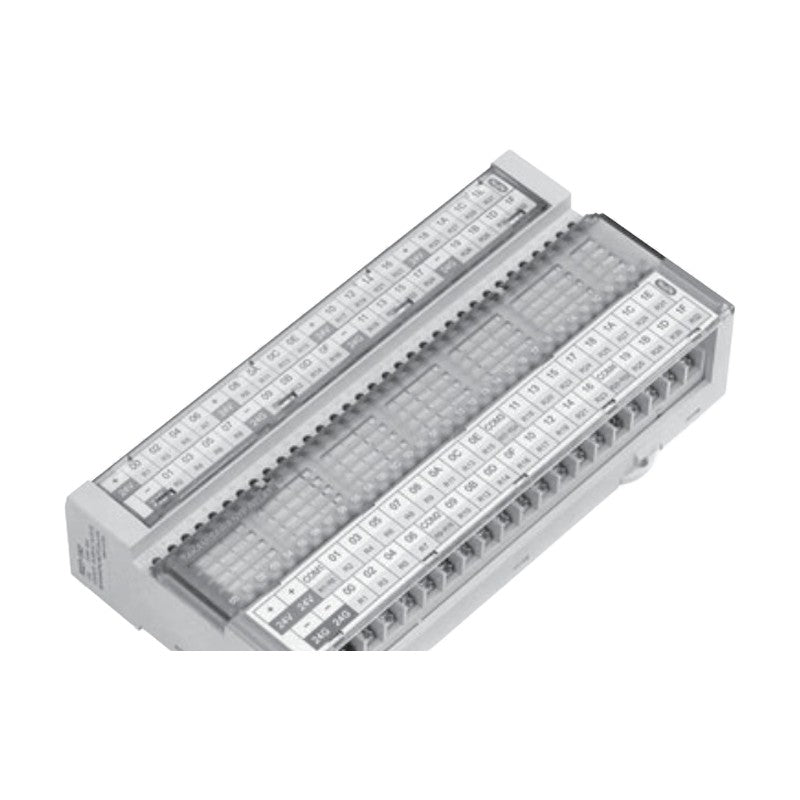

Samwon ACT R16T / R32T Series Relay Terminals with Input and Output Terminal Blocks

Samwon ACT R16T / R32T Series Relay Terminals with Input and Output Terminal Blocks

16- and 32-point relay terminals with screw terminal blocks on both input and output sides for direct wiring without connectors.

Key features

  • Screw terminal blocks on both input and output sides for direct wiring from PLC I/O
  • Long-life (Takamisawa NYP) or economy (Panasonic PA-N) relay versions
  • Case-integrated construction
  • Relay operation LEDs and channel mounting
  • Coil-side surge absorption circuit protects the controller

Specifications

Material Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Terminal Screw M3 x 6L
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature -10 to +50 C (no condensation)
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Coil Rated Voltage 24 V DC
Contact Common 8-point COM
Interface Screw terminal, 7.62 mm pitch, both sides
Mounting DIN rail (channel)
R16T-YNT Points: 16 | Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Terminals: 20 poles each side | Dimensions (W x D): 90.6 x 88.0 mm
R16T-YPT Points: 16 | Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Terminals: 20 poles each side | Dimensions (W x D): 90.6 x 88.0 mm
R16T-NS5A-20P Points: 16 | Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Terminals: 20 poles each side | Dimensions (W x D): 90.6 x 88.0 mm
R16T-PS5A-20P Points: 16 | Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Terminals: 20 poles each side | Dimensions (W x D): 90.6 x 88.0 mm
R32T-YNT Points: 32 | Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Terminals: 40 poles each side | Dimensions (W x D): 174.0 x 88.0 mm
R32T-YPT Points: 32 | Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Terminals: 40 poles each side | Dimensions (W x D): 174.0 x 88.0 mm
R32T-NS5A-40P Points: 32 | Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Terminals: 40 poles each side | Dimensions (W x D): 174.0 x 88.0 mm
R32T-PS5A-40P Points: 32 | Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Terminals: 40 poles each side | Dimensions (W x D): 174.0 x 88.0 mm
Relay Interface TerminalsSamwon ACT
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R16T / R32T Series Relay Terminals with Input and Output Terminal Blocks

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (8)

R16T-YNT, R16T-YPT, R16T-NS5A-20P, R16T-PS5A-20P, R32T-YNT, R32T-YPT, R32T-NS5A-40P, R32T-PS5A-40P
