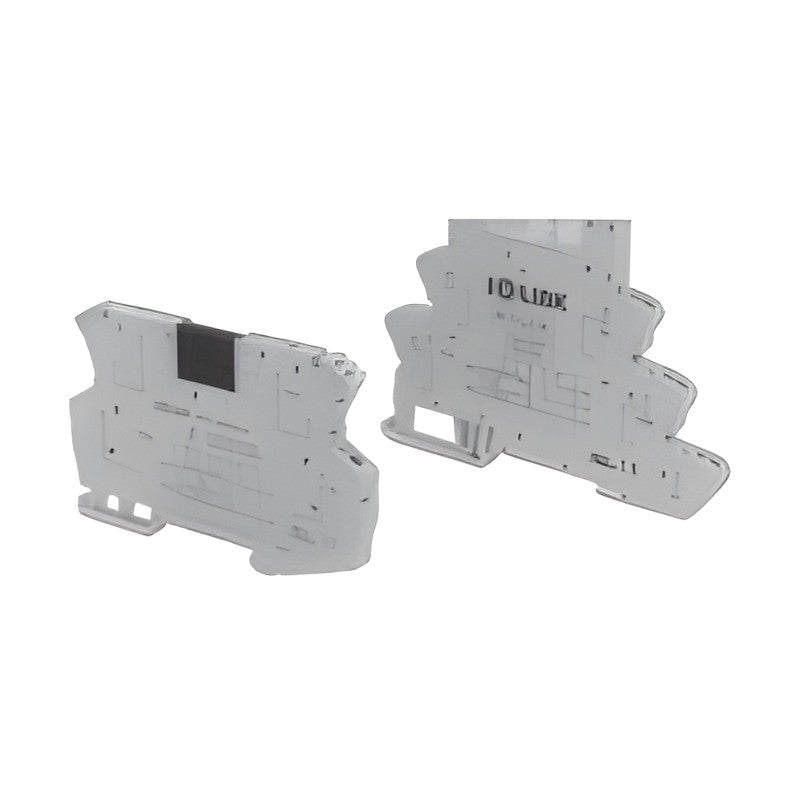

Samwon ACT R1T-E Series 6.2mm 1 Form A Push-In Relay Terminals

Samwon ACT R1T-E Series 6.2mm 1 Form A Push-In Relay Terminals

6.2 mm wide 1-point push-in relay sockets and relay terminal assemblies for Takamisawa NY or Panasonic PA-N 1 Form A relays. 6.2 mm wide 1 Form A push-in relay terminal.

Key features

  • Push-in wiring is faster than Y/O screw terminals
  • Internal spring terminal structure resists vibration in machine tools and ships
  • Removable relay with integrated socket and channel mounting
  • Contact LED for checking operation
  • Accessories: STB-49F shorting bar and M-49F name plate (sold separately)

Specifications

Withstand Voltage 3,000 V/min
Strip Length 10 mm
Applicable Wire AWG 21-14 (0.5-2.5 mm2)
Material Case: PA66; PCB: Epoxy; Conductor: Phosphor copper
Operating Temperature -40 to +70 C (no condensation)
Points 1
Interface Push-in terminal
Mounting DIN rail (channel)
Certification cURus, CE
Applicable Tool Flat screwdriver 2.6 x 0.35 mm
Rated Load 250 V 5 A
Input Voltage 12-24 V AC/DC
R1T-APAN-E Type: Relay socket | Applicable relay: Panasonic APAN3124
R1T-NY-E Type: Relay socket | Applicable relay: Takamisawa NY-24W-K
R1T-4P-E Type: Socket with relay (R1T-APAN-E + APAN3124)
R1T-4P-NY-E Type: Socket with relay (R1T-NY-E + NY-24W-K)
STB-49F Type: Shorting bar, sold separately | Width: 48.4 mm
M-49F Type: Name plate, sold separately
