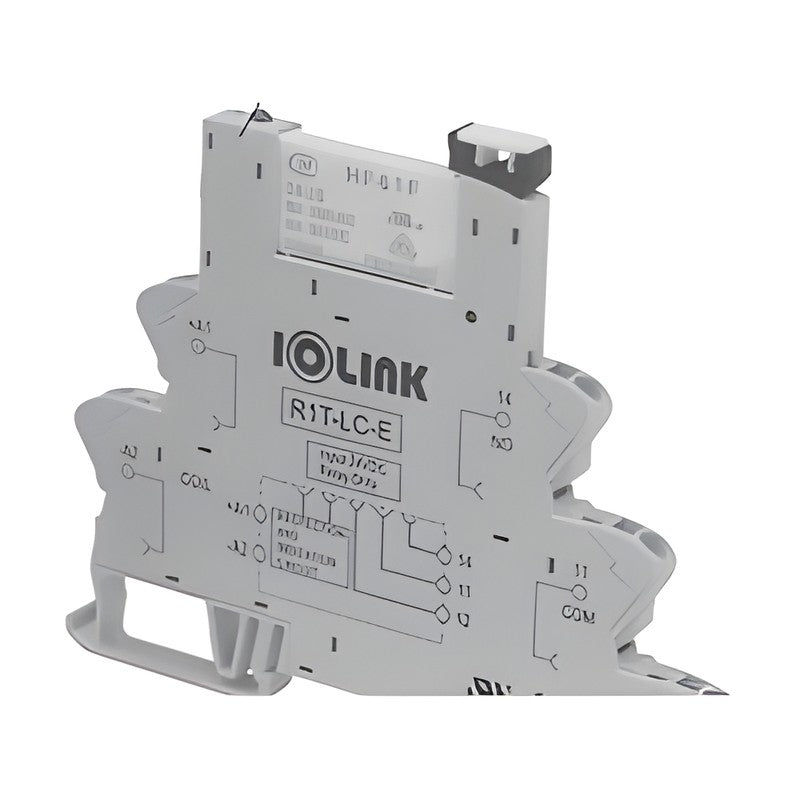

Samwon ACT R1T-LC-E 6.2mm 1 Form C Push-In Relay Terminal

Samwon ACT R1T-LC-E 6.2mm 1 Form C Push-In Relay Terminal

6.2 mm wide 1-point push-in relay socket and assembly for the Hongfa HF41F 1 Form C 6 A relay. 1C relay allows use as contact A or contact B.

Key features

  • Push-in wiring is faster than Y/O screw terminals
  • Internal spring terminal structure resists vibration
  • Removable relay with integrated socket and channel mounting
  • Contact LED for checking operation
  • Accessories: STB-R1E shorting bar and M-R1E name plate (sold separately)

Specifications

Withstand Voltage 3,000 V/min
Strip Length 10 mm
Applicable Wire AWG 21-14 (0.5-2.5 mm2)
Material Case: PA66; PCB: Epoxy; Conductor: Phosphor copper
Operating Temperature -40 to +70 C (no condensation)
Points 1
Interface Push-in terminal
Mounting DIN rail (channel)
Certification cURus, CE
Applicable Tool Flat screwdriver 2.6 x 0.35 mm
Rated Load 250 V 6 A
Input Voltage 12-24 V DC
R1T-LC-E Type: Relay socket
R1T-LC-E Ass'y Type: Socket with relay (R1T-LC-E + HF41F/24-ZST)
STB-R1E Type: Shorting bar, sold separately
M-R1E Type: Name plate, sold separately
Relay Interface TerminalsSamwon ACT
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R1T-LC-E 6.2mm 1 Form C Push-In Relay Terminal

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (4)

R1T-LC-E, R1T-LC-E Ass'y, STB-R1E, M-R1E

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R1T-LC-EType: Relay socket
R1T-LC-E Ass'yType: Socket with relay (R1T-LC-E + HF41F/24-ZST)
STB-R1EType: Shorting bar, sold separately
M-R1EType: Name plate, sold separately
