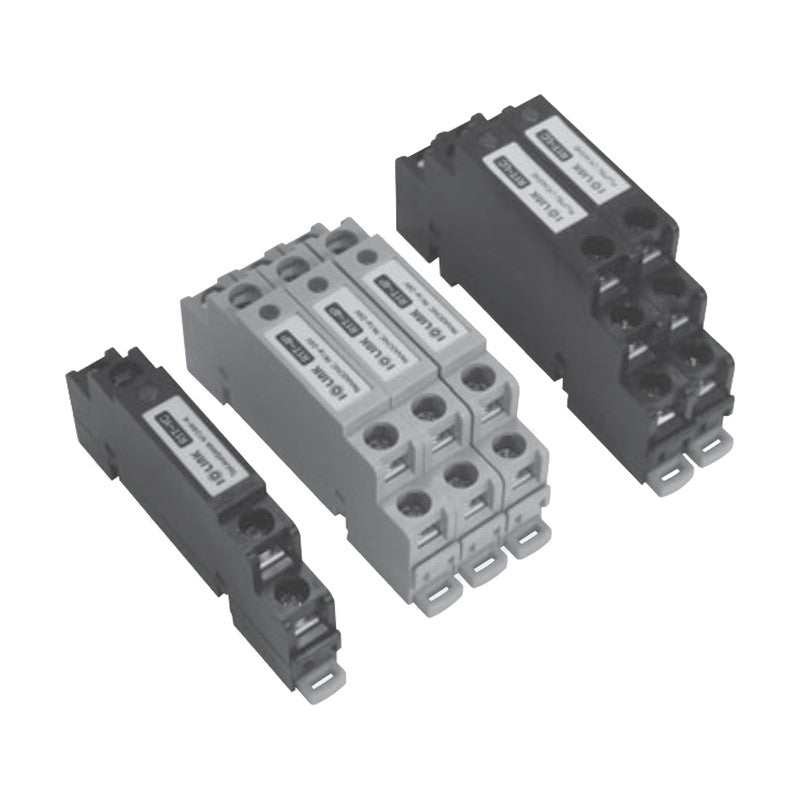

Samwon ACT R1T Series 1-Point Slim Power Relay Terminals

Samwon ACT R1T Series 1-Point Slim Power Relay Terminals

10 mm wide 1-point power relay terminals fitted with Takamisawa NY, Panasonic PA-N or Hongfa HF41F relays, with screw terminals and DIN rail mounting. 1C relay version allows use as a contact A or contact B output. 10 mm slim width, about 1/3 of MY4N/LY4N-type sockets, for LCD, PDP, semiconductor and machine tool panels.

Key features

  • Choice of Takamisawa NY, Panasonic PA-N or Hongfa HF41F relays
  • Contact status LED and user marking plate on the front
  • Enclosed PCB case with built-in surge absorption circuit
  • Low-cost 1-point relay terminal without a separate socket

Specifications

Material Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Terminal Screw M3 x 6L
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature -10 to +50 C (no condensation)
Points 1
Coil Rated Voltage 24 V DC
Common Coil side individual power (shorting bar sold separately); Contact side individual COM (shorting bar sold separately)
Interface Screw terminal, M3 screw
Mounting DIN rail (channel)
Accessory 4-pole shorting bar (5 pcs included per 10 units)
R1T-YC Relay: Takamisawa NY-24W-K | Contact: 1a, 5 A 250 V AC / 5 A 30 V DC | Dimensions (W x D): 10.0 x 67.0 mm
R1T-4P Relay: Panasonic APAN3124 | Contact: 1 Form A, 5 A 250 V AC / 5 A 30 V DC | Dimensions (W x D): 10.0 x 67.0 mm
R1T-LC Relay: Hongfa HF41F/24-ZST | Contact: 1 Form C, 6 A 250 V AC / 30 V DC | Dimensions (W x D): 10.0 x 76.0 mm
