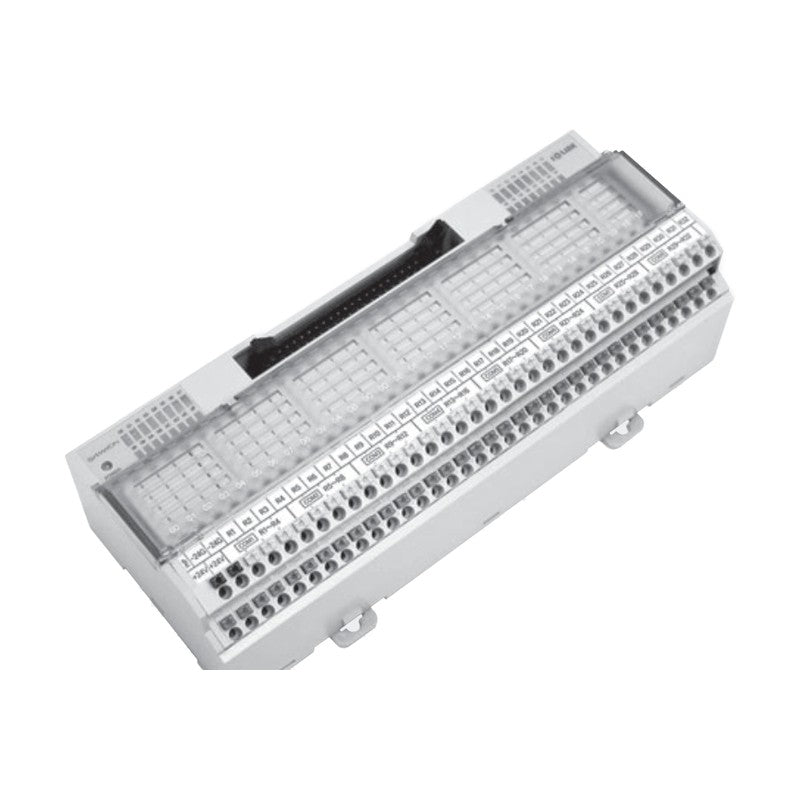

Samwon ACT R32C-E Series 32-Point Push-Type Screwless Relay Terminals

Samwon ACT R32C-E Series 32-Point Push-Type Screwless Relay Terminals

32-point relay terminals with push-type screwless load terminals and selectable load-side common configuration, fitted with Takamisawa NY or Panasonic PA-N relays.

Key features

  • Push-type screwless terminals speed up wiring
  • Load side available as individual, 4-point COM or 8-point COM
  • Internal spring terminals resist vibration
  • Varistor versions protect contacts from arcing and extend relay life
  • Versions with release buttons (/B) or without (wire removed with a flat screwdriver)
  • Standard cables for PLCs, machine tools, DCS and DDC

Specifications

Points 32 (1a x 32)
Coil Rated Voltage 24 V DC
Coil Interface Connector MIL-C-83503 40-pin (XG4A-4031 / HIF3BA-40PA-2.54DSA)
Dimensions 178.5 x 70.0 mm (W x D)
Mounting DIN rail (channel)
Applicable Wire Solid 0.5-1.5 mm2; Stranded UL 17-22 AWG / IEC 1.0 mm2 (use ferrules)
Strip Length 9-10 mm
Material Terminal block: PA66; Conductor: Copper, tin plated; Base: Stainless steel; Cover: Modified PPO; PCB: Epoxy 1.6 t / 2 oz
R32C-YN-8E Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: None | Release button: None
R32C-YN-8E/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: None | Release button: Yes
R32C-YN-C Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-YN-C/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-YN-4C Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-YN-4C/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-YN-8C Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-YN-8C/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-YN-8EV Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: Varistor | Release button: None
R32C-YN-8EV/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: Varistor | Release button: Yes
R32C-YN-CV Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-YN-CV/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-YN-4CV Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-YN-4CV/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-YN-8CV Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-YN-8CV/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-YP-8E Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: None | Release button: None
R32C-YP-8E/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: None | Release button: Yes
R32C-YP-C Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-YP-C/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-YP-4C Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-YP-4C/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-YP-8C Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-YP-8C/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-YP-8EV Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: Varistor | Release button: None
R32C-YP-8EV/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: Varistor | Release button: Yes
R32C-YP-CV Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-YP-CV/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-YP-4CV Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-YP-4CV/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-YP-8CV Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-YP-8CV/B Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-NS5A-8E Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: None | Release button: None
R32C-NS5A-8E/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: None | Release button: Yes
R32C-NS5A-C Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-NS5A-C/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-NS5A-4C Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-NS5A-4C/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-NS5A-8C Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-NS5A-8C/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-NS5A-8EV Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: Varistor | Release button: None
R32C-NS5A-8EV/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: Varistor | Release button: Yes
R32C-NS5A-CV Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-NS5A-CV/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-NS5A-4CV Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-NS5A-4CV/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-NS5A-8CV Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-NS5A-8CV/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-PS5A-8E Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: None | Release button: None
R32C-PS5A-8E/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: None | Release button: Yes
R32C-PS5A-C Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-PS5A-C/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-PS5A-4C Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-PS5A-4C/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-PS5A-8C Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: None
R32C-PS5A-8C/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: None | Release button: Yes
R32C-PS5A-8EV Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: Varistor | Release button: None
R32C-PS5A-8EV/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 2P COM | Contact interface: Screwless push-type, 44 poles | Contact protection: Varistor | Release button: Yes
R32C-PS5A-CV Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-PS5A-CV/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: Individual COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-PS5A-4CV Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-PS5A-4CV/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 4 points / 4P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
R32C-PS5A-8CV Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: None
R32C-PS5A-8CV/B Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact common: 8 points / 8P COM | Contact interface: Screwless push-type, 68 poles | Contact protection: Varistor | Release button: Yes
Relay Interface TerminalsSamwon ACT
64 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R32C-E Series 32-Point Push-Type Screwless Relay Terminals

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (64)

R32C-YN-8E, R32C-YN-8E/B, R32C-YN-C, R32C-YN-C/B, R32C-YN-4C, R32C-YN-4C/B, R32C-YN-8C, R32C-YN-8C/B, R32C-YN-8EV, R32C-YN-8EV/B + 54 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
