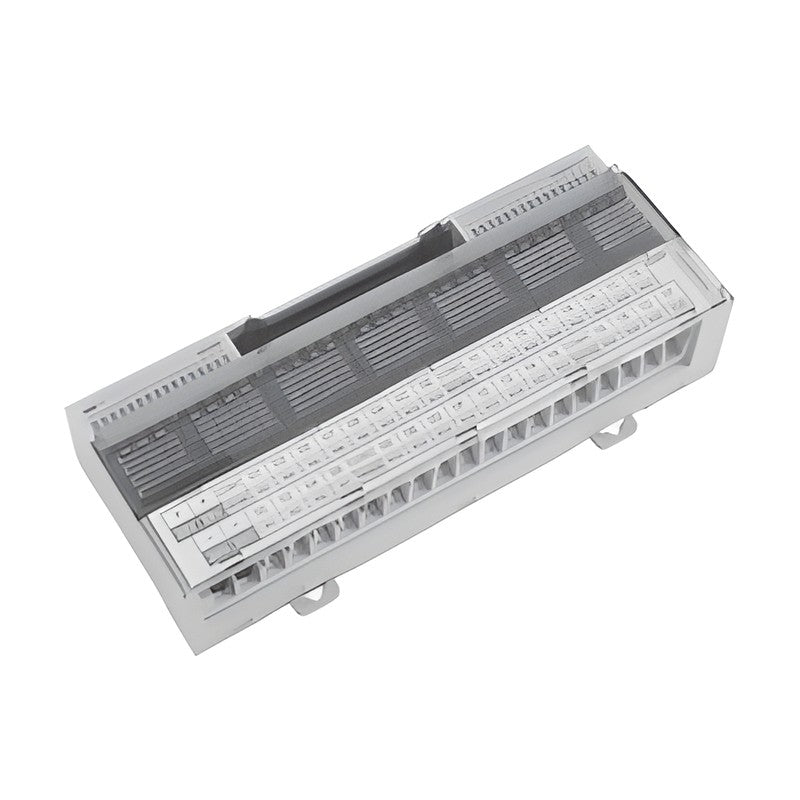

Samwon ACT R32C-G6DN Series 32-Point Relay Terminals with Omron G6DN Relays

32-point relay terminals with a 40-pin MIL connector input and 8-point load commons, fitted with slim Omron G6DN relays.

Key features

Slim 5 mm Omron G6DN relays with 6,000 V impulse withstand voltage
Handles inductive loads (cos phi = 0.4, L/R = 7 ms, 2 A)
Relay operation LEDs and channel mounting
Coil-side surge absorption circuit protects the controller
Relay replacement tool included

Specifications

Material	Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Terminal Screw	M3 x 6L
Screw Torque	7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature	-10 to +50 C (no condensation)
Applicable Wire	AWG 22-16 (1.5 mm2 max.)
Relay	Omron G6DN-1A-SL 24VDC (SPST-NO, 5 A 250 V AC / 5 A 30 V DC, 6,000 V impulse withstand)
Points	32 (1a x 32)
Coil Rated Voltage	24 V DC
Contact Common	8-point COM
Coil Interface	Connector MIL-C-83503 40-pin
Contact Interface	Screw terminal, 7.62 mm pitch, 40 poles
Dimensions	174.0 x 70.0 mm (W x D)

R32C-NT-G6DN		Coil common: NPN (+COM)
R32C-PT-G6DN		Coil common: PNP (-COM)

Relay Interface TerminalsSamwon ACT

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R32C-G6DN Series 32-Point Relay Terminals with Omron G6DN Relays

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (2)

R32C-NT-G6DN, R32C-PT-G6DN
