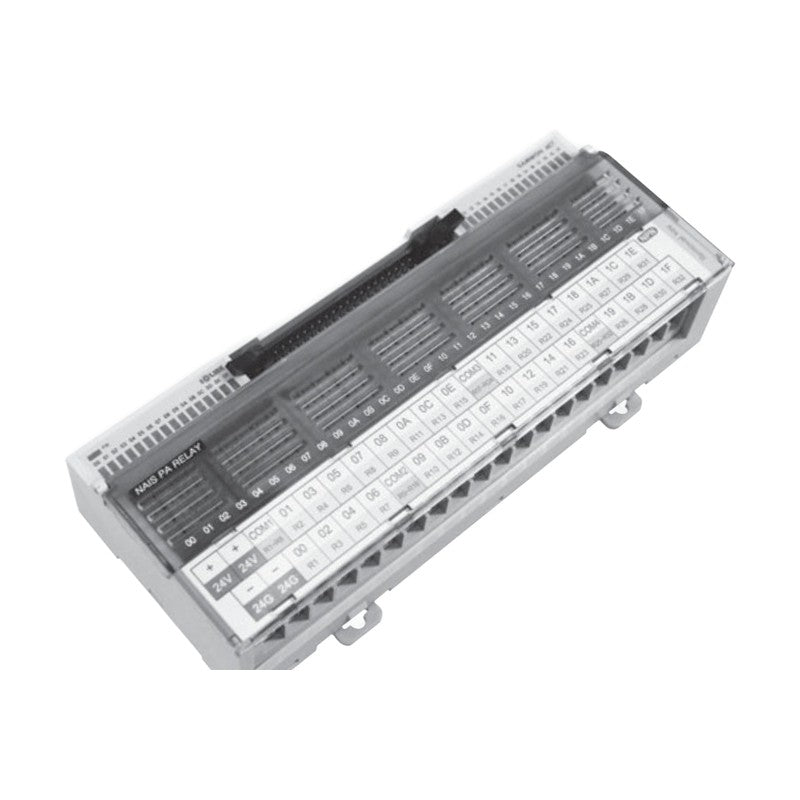

Samwon ACT R32C Series 32-Point Relay Terminals with 8-Point Load Common

Samwon ACT R32C Series 32-Point Relay Terminals with 8-Point Load Common

Compact 32-point relay terminals for PLC outputs with a 40-pin MIL connector input and 8-point load commons, with or without contact-protection varistors.

Key features

  • Compact 32-point terminal: 174.0 x 70.0 x 39.5 mm without varistor, 174.0 x 70.0 x 49.5 mm with varistor
  • Long-life (Takamisawa NY) or economy (Panasonic PA-N) relay versions
  • Varistor versions protect contacts from arcing and extend relay life (not for fast-response circuits)
  • Relay operation LEDs and channel mounting
  • Coil-side surge absorption circuit protects the controller
  • Standard cables available for PLCs, machine tools, DCS and DDC

Specifications

Material Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Terminal Screw M3 x 6L
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature -10 to +50 C (no condensation)
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Points 32 (1a x 32)
Coil Rated Voltage 24 V DC
Load Rating CE 250 V AC, 30 V DC / 5 A; UL 250 V AC, 30 V DC / 3 A per point, 8 A per COM
Contact Common 8-point COM
Coil Interface Connector MIL-C-83503 40-pin
Contact Interface Screw terminal, 7.62 mm pitch, 40 poles
Dimensions 174 x 70.0 mm (W x D)
R32C-YNT Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: None | Certification: CE
R32C-YPT Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: None | Certification: CE
R32C-YNT-UL Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: None | Certification: UL
R32C-YPT-UL Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: None | Certification: UL
R32C-NS5A-40P Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: None | Certification: UL, CE
R32C-PS5A-40P Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: None | Certification: UL, CE
R32C-YNT-V Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: Varistor | Certification: CE
R32C-YPT-V Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: Varistor | Certification: CE
R32C-YNT-VU Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: Varistor | Certification: UL
R32C-YPT-VU Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: Varistor | Certification: UL
R32C-NS5A-V Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: Varistor | Certification: UL, CE
R32C-PS5A-V Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: Varistor | Certification: UL, CE
