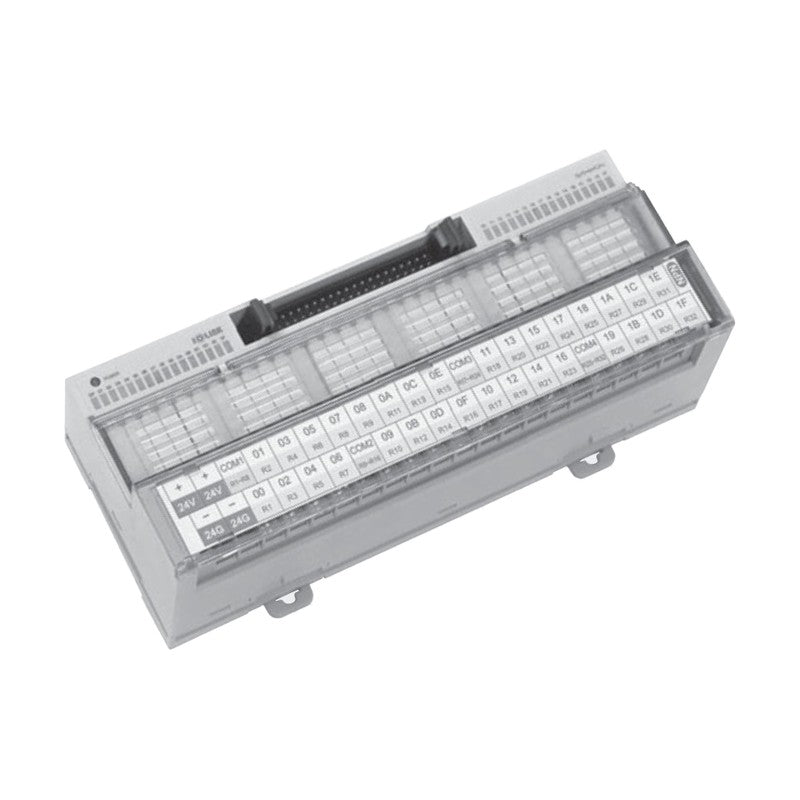

Samwon ACT R32F Series 32-Point Relay Terminals with Detachable Terminal Block

Samwon ACT R32F Series 32-Point Relay Terminals with Detachable Terminal Block

32-point relay terminals with a detachable load-side terminal block for easy wiring and replacement, with or without contact-protection varistors.

Key features

  • Load-side terminal block can be detached for wiring and reattached to the relay terminal
  • Relay terminal can be replaced without removing field wiring
  • Long-life (Takamisawa NY) or economy (Panasonic PA-N) relay versions
  • Varistor versions protect contacts from arcing and extend relay life
  • Gold-plated contacts on the detachable section for reliable connection
  • Relay operation LEDs, channel mounting and coil-side surge absorption circuit

Specifications

Material Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Terminal Screw M3 x 6L
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature -10 to +50 C (no condensation)
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Points 32 (1a x 32)
Coil Rated Voltage 24 V DC
Contact Common 8-point COM
Coil Interface Connector MIL-C-83503 40-pin
Contact Interface Screw terminal, 40 poles (detachable)
Dimensions 173.6 x 70 mm (W x D)
Mounting DIN rail (channel)
Samwon ACT R32F Series 32-Point Relay Terminals with Detachable Terminal Block - reference 2
R32F-YNT Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: None
R32F-YPT Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: None
R32F-NS5A-40P Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: None
R32F-PS5A-40P Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: None
R32F-YNT-V Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: Varistor
R32F-YPT-V Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: Varistor
R32F-NS5A-V Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: Varistor
R32F-PS5A-V Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: Varistor
Relay Interface TerminalsSamwon ACT
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R32F Series 32-Point Relay Terminals with Detachable Terminal Block

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (8)

R32F-YNT, R32F-YPT, R32F-NS5A-40P, R32F-PS5A-40P, R32F-YNT-V, R32F-YPT-V, R32F-NS5A-V, R32F-PS5A-V

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Samwon ACT R32F Series 32-Point Relay Terminals with Detachable Terminal Block - reference 2
0 selected
RFQ List (0)
Product codeSpec
R32F-YNTRelay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: None
R32F-YPTRelay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: None
R32F-NS5A-40PRelay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: None
R32F-PS5A-40PRelay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: None
R32F-YNT-VRelay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: Varistor
R32F-YPT-VRelay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: Varistor
R32F-NS5A-VRelay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: NPN (+COM) | Contact protection: Varistor
R32F-PS5A-VRelay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Coil common: PNP (-COM) | Contact protection: Varistor

Need a different model, or a part not listed here? Send us your parts list →
