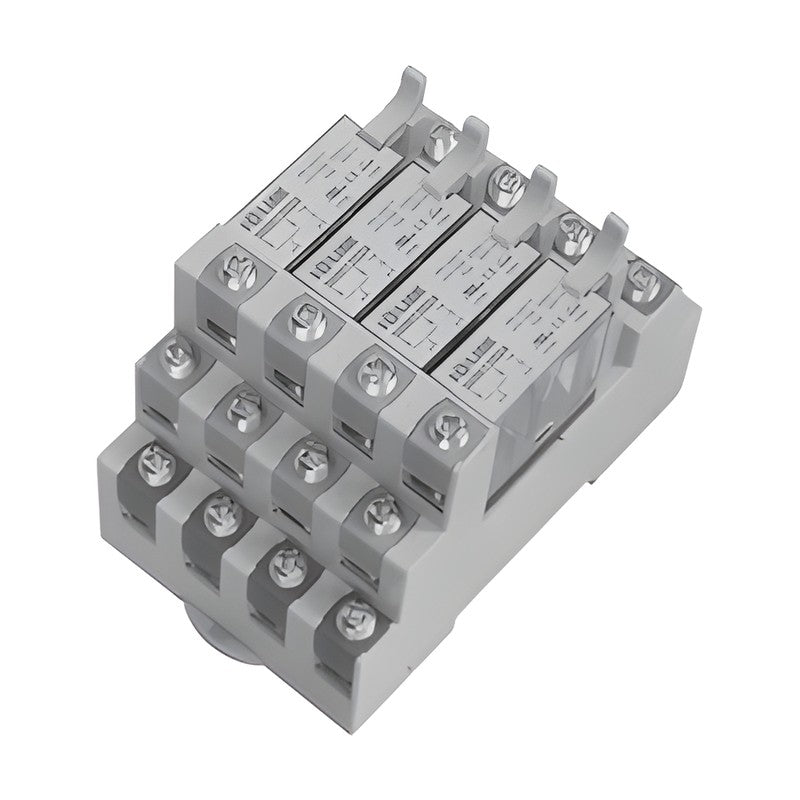

Samwon ACT R4A 4-Point Power Relay Terminal with SHN Relay, 10 A

Samwon ACT R4A 4-Point Power Relay Terminal with SHN Relay, 10 A

4-point power relay terminal fitted with SAMWON ACT SHN power relays (10 A, 1 Form C) for driving heavy loads such as large solenoid valves.

Key features

  • SHN power relays rated 10 A 250 V AC / 10 A 30 V DC
  • Replaces bulky LY/MY relays and reduces panel mounting area
  • Built-in short bars for power and contact commons simplify wiring
  • Lever for easy relay removal; self-lifting terminal screws for ring terminals
  • Contact side uses 0.8t brass conductor plates instead of PCB traces for 10 A
  • Safety cover over conductive parts

Specifications

Case Modified PPO
Conductor C2680 t0.8 / C2100 t0.3
Terminal Screw M3.5 x 10L
Applicable Wire AWG22-16 (1.5 mm2 max)
Points 4 (1c x 4)
Contact 1 Form C, 10 A 250 V AC / 10 A 30 V DC
Coil Common Individual power (4P short bar included)
Contact Common Individual common (4P short bar included)
Interface Screw terminal block, 13.5 mm pitch
Dimensions (W x D) 55.0 x 87.2 mm
Mounting Screw / DIN rail (channel)
Dielectric Strength 5,000 V AC 1 min (coil-contact)
R4A-DC24VC Coil Voltage: 24 V DC | Relay: SHN12024
R4A-AC220VC Coil Voltage: 230 V AC | Relay: SHN110Y2
R4A-AC110VC Coil Voltage: 115 V AC | Relay: SHN110X1
Relay Interface TerminalsSamwon ACT
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R4A 4-Point Power Relay Terminal with SHN Relay, 10 A

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (3)

R4A-DC24VC, R4A-AC220VC, R4A-AC110VC

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R4A-DC24VCCoil Voltage: 24 V DC | Relay: SHN12024
R4A-AC220VCCoil Voltage: 230 V AC | Relay: SHN110Y2
R4A-AC110VCCoil Voltage: 115 V AC | Relay: SHN110X1
