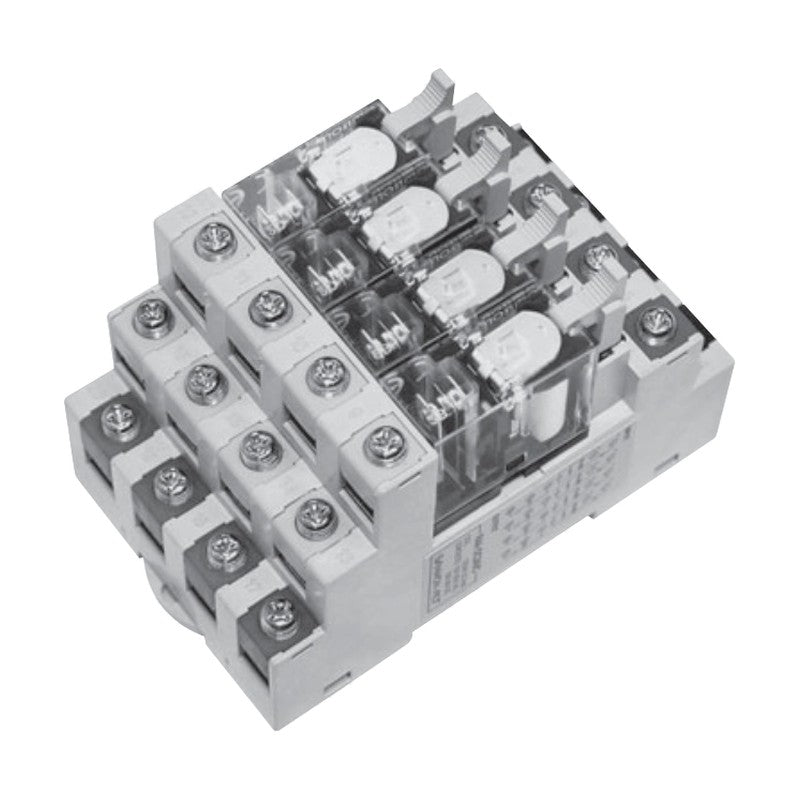

Samwon ACT R4P 4-Point Power Relay Terminal with OMRON G2R Relay, 10 A

Samwon ACT R4P 4-Point Power Relay Terminal with OMRON G2R Relay, 10 A

4-point power relay terminal fitted with OMRON G2R-1-S relays (10 A, 1 Form C) for heavy loads such as large solenoid valves.

Key features

  • OMRON G2R relays rated 10 A 250 V AC / 10 A 30 V DC
  • Coil-contact dielectric strength 5,000 V, surge withstand 10,000 V
  • Available with 24 V DC, 110 V AC and 220 V AC coils
  • Lever for easy relay removal; self-lifting terminal screws for ring terminals
  • Brass conductor plates instead of PCB traces for 10 A; safety cover over conductive parts

Specifications

Case Modified PPO
Conductor C2680 t0.8 / C2100 t0.3
Terminal Screw M3.5 x 10L
Applicable Wire AWG22-16 (1.5 mm2 max)
Points 4 (1c x 4)
Contact 1 Form C, 10 A 250 V AC / 10 A 30 V DC
Coil Common Individual power (4P short bar included)
Contact Common Individual common (4P short bar included)
Interface Screw terminal block, 13.5 mm pitch
Dimensions (W x D) 55.0 x 87.2 mm
Mounting Screw / DIN rail (channel)
Relay Origin Malaysia
R4P-DC24VC Coil Voltage: 24 V DC | Relay: OMRON G2R-1-S DC24V
R4P-AC220VC Coil Voltage: 200/220 V AC | Relay: OMRON G2R-1-S AC220V
R4P-AC110VC Coil Voltage: 100/110 V AC | Relay: OMRON G2R-1-S AC110V
Relay Interface TerminalsSamwon ACT
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R4P 4-Point Power Relay Terminal with OMRON G2R Relay, 10 A

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (3)

R4P-DC24VC, R4P-AC220VC, R4P-AC110VC
