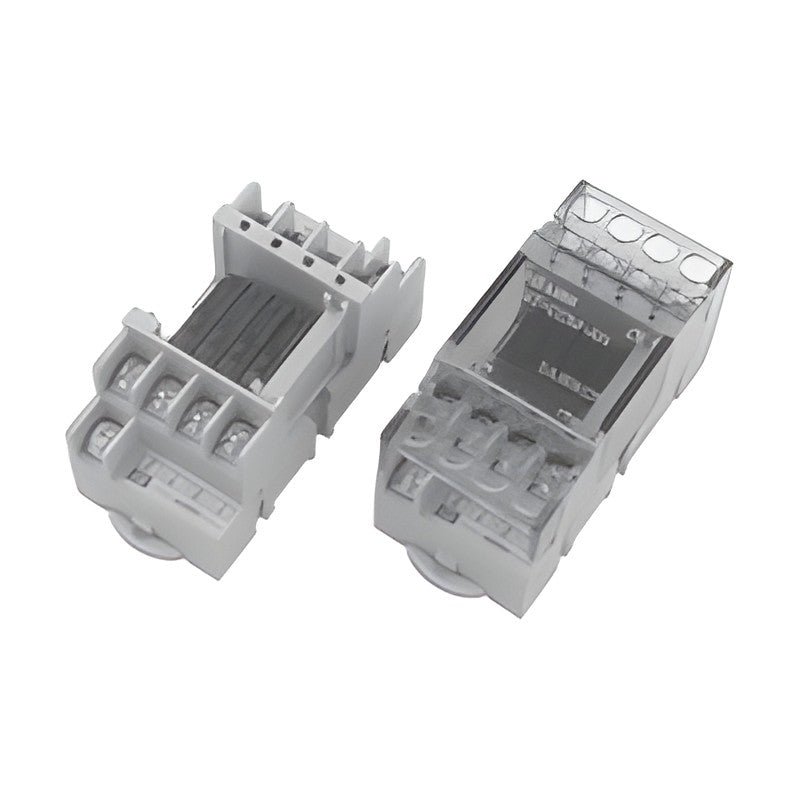

Samwon ACT R4T-COM Series 4-Point Common Type Relay Terminals

4-point relay terminals with coil and contact commons bussed internally, fitted with Panasonic PA-N relays, in NPN and PNP versions.

Key features

Coil and contacts each have a 4-point common, so no shorting bar is needed
NPN and PNP versions
Economical type with 5 mm Panasonic PA-N relays
Contact LEDs for operation check
DIN rail or screw mounting; relay replacement tool included

Specifications

Material	Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Applicable Wire	AWG 22-16 (1.5 mm2 max.)
Terminal Screw	M3 x 6L
Screw Torque	7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature	-10 to +50 C (no condensation)
Points	4 (1a x 4)
Coil Rated Voltage	24 V DC
Load Rating	250 V AC, 30 V DC; 5 A/point, 10 A/common
Relay	Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC)
Contact Common	4-point common
Interface	Screw terminal, 7.62 mm pitch
Dimensions	32.3 x 67.0 mm (W x D)

R4T-COM-AN		Coil common: NPN (+COM)
R4T-COM-AP		Coil common: PNP (-COM)

Relay Interface TerminalsSamwon ACT

2 product codes available in this family
