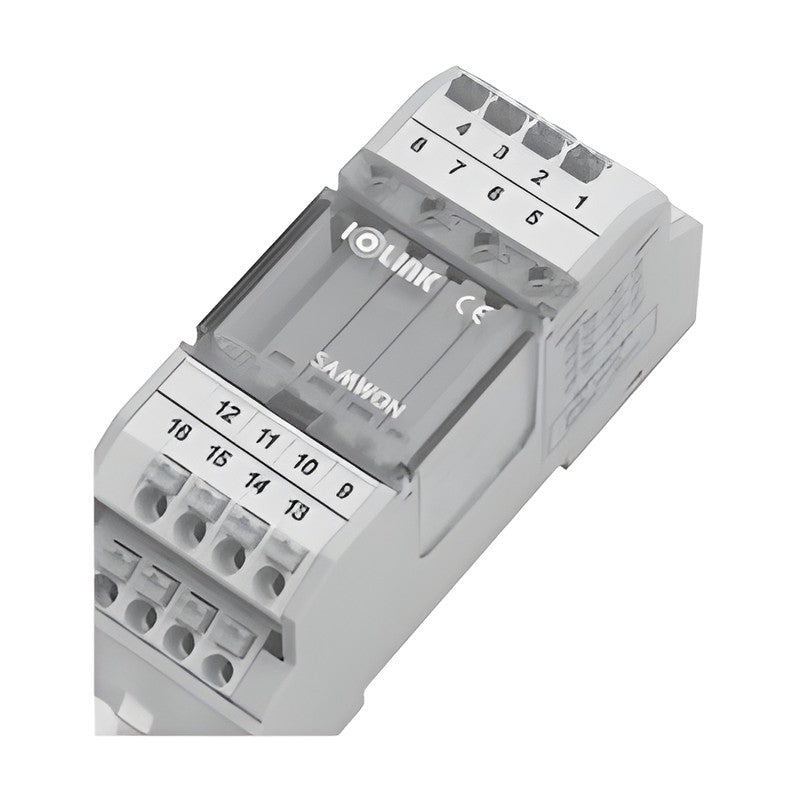

Samwon ACT R4T-E Series 4-Point Push-Type Screwless Relay Terminals

Samwon ACT R4T-E Series 4-Point Push-Type Screwless Relay Terminals

27.8 mm wide 4-point relay terminals with push-type screwless terminal blocks, fitted with Takamisawa NY or Panasonic PA-N relays.

Key features

  • Push-type screwless terminals speed up wiring. 27.8 mm width, smaller than bolt-type 4-point terminals
  • Internal spring terminals resist vibration
  • Contact LEDs, channel mounting and relay replacement tool included
  • Versions with release buttons (/B) or without (wire removed with a flat screwdriver)

Specifications

Points 4 (1a x 4)
Coil Rated Voltage 24 V DC
Contact Common Individual COM (4P shorting bar)
Interface Screwless push-type terminal
Dimensions 27.8 x 91.0 mm (W x D)
Applicable Wire Solid 0.5-1.5 mm2; Stranded UL 17-22 AWG / IEC 1.0 mm2 (use ferrules)
Strip Length 9-10 mm
Operating Temperature -10 to +50 C (no condensation)
Mounting Screw / DIN rail (channel)
Included Shorting bar (1 pc)
R4T-YC-E1 Relay: Takamisawa NY-24W-K | Coil common: Individual power | Release button: None
R4T-YC-E1/B Relay: Takamisawa NY-24W-K | Coil common: Individual power | Release button: Yes
R4T-YC-E2 Relay: Takamisawa NY-24W-K | Coil common: NPN (+COM) | Release button: None
R4T-YC-E2/B Relay: Takamisawa NY-24W-K | Coil common: NPN (+COM) | Release button: Yes
R4T-YC-E3 Relay: Takamisawa NY-24W-K | Coil common: PNP (-COM) | Release button: None
R4T-YC-E3/B Relay: Takamisawa NY-24W-K | Coil common: PNP (-COM) | Release button: Yes
R4T-16P-E1 Relay: Panasonic APAN3124 | Coil common: Individual power | Release button: None
R4T-16P-E1/B Relay: Panasonic APAN3124 | Coil common: Individual power | Release button: Yes
R4T-16P-E2 Relay: Panasonic APAN3124 | Coil common: NPN (+COM) | Release button: None
R4T-16P-E2/B Relay: Panasonic APAN3124 | Coil common: NPN (+COM) | Release button: Yes
R4T-16P-E3 Relay: Panasonic APAN3124 | Coil common: PNP (-COM) | Release button: None
R4T-16P-E3/B Relay: Panasonic APAN3124 | Coil common: PNP (-COM) | Release button: Yes
