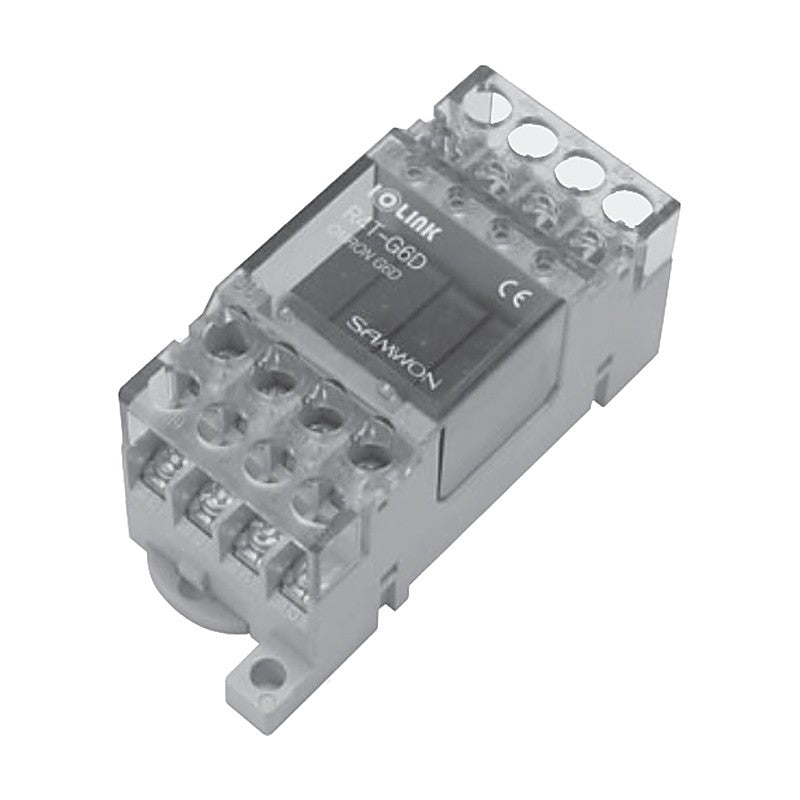

Samwon ACT R4T-G6D 4-Point Relay Terminal with Omron G6D Relays

Ultra-compact 4-point relay terminal fitted with 6.5 mm Omron G6D relays for inductive loads.

Key features

Omron G6D relays for inductive loads (cos phi = 0.4, 2 A)
Keeps the 32.3 (W) x 67.0 (D) mm size despite 6.5 mm wide relays
Contact LEDs; DIN rail or screw mounting
Relay replacement tool included
Built-in common bar

Specifications

Material	Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Terminal Screw	M3 x 6L
Screw Torque	7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature	-10 to +50 C (no condensation)
Applicable Wire	AWG 22-16 (1.5 mm2 max.)
Relay	Omron G6D-1A-ASI 24VDC (SPST-NO, 5 A 250 V AC / 5 A 30 V DC)
Points	4 (1a x 4)
Coil Rated Voltage	24 V DC
Common	Coil side individual power; Contact side individual COM (4P shorting bar included)
Interface	Screw terminal, 7.62 mm pitch
Dimensions	32.3 x 67.0 mm (W x D)
Mounting	Screw / DIN rail (channel)
