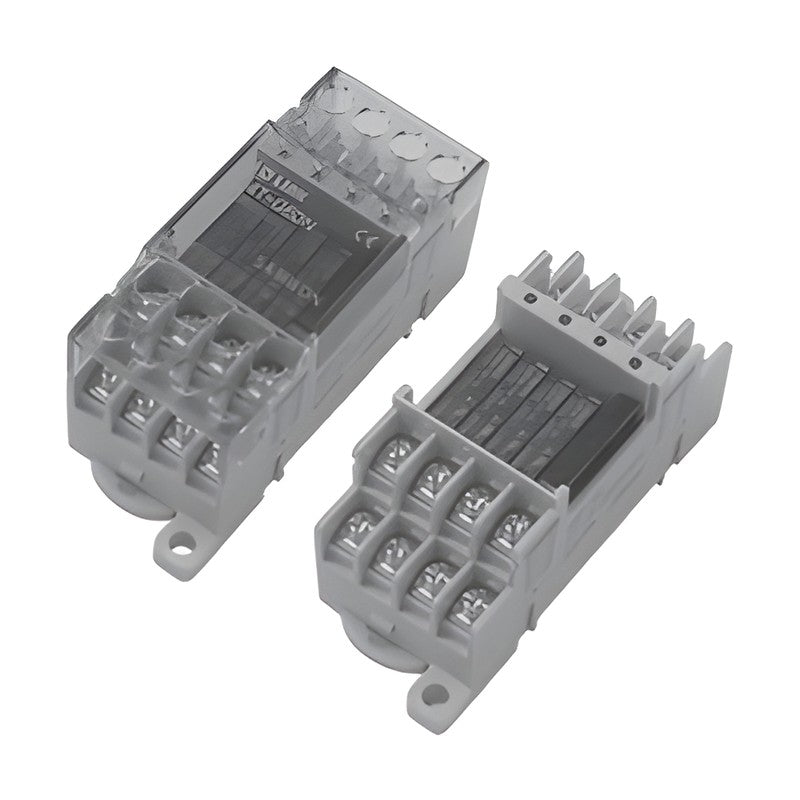

Samwon ACT R4T-G6DN 4-Point Relay Terminal with Omron G6DN Relays

4-point relay terminal fitted with slim 5 mm Omron G6DN relays with 6,000 V impulse withstand voltage for inductive loads.

Key features

Slim 5 mm Omron G6DN relays with 6,000 V impulse withstand voltage
Handles inductive loads (cos phi = 0.4, L/R = 7 ms, 2 A)
Contact LEDs; DIN rail or screw mounting
Relay replacement tool included
Built-in common bar

Specifications

Material	Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Terminal Screw	M3 x 6L
Screw Torque	7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature	-10 to +50 C (no condensation)
Applicable Wire	AWG 22-16 (1.5 mm2 max.)
Relay	Omron G6DN-1A-SL 24VDC (SPST-NO, 5 A 250 V AC / 5 A 30 V DC, 6,000 V impulse withstand)
Points	4 (1a x 4)
Coil Rated Voltage	24 V DC
Common	Coil side individual power; Contact side individual COM (4P shorting bar included)
Interface	Screw terminal, 7.62 mm pitch
Dimensions	32.0 x 71.0 mm (W x D)
Mounting	Screw / DIN rail (channel)

R4T-G6DN

Relay Interface TerminalsSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R4T-G6DN 4-Point Relay Terminal with Omron G6DN Relays

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (1)

R4T-G6DN

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
