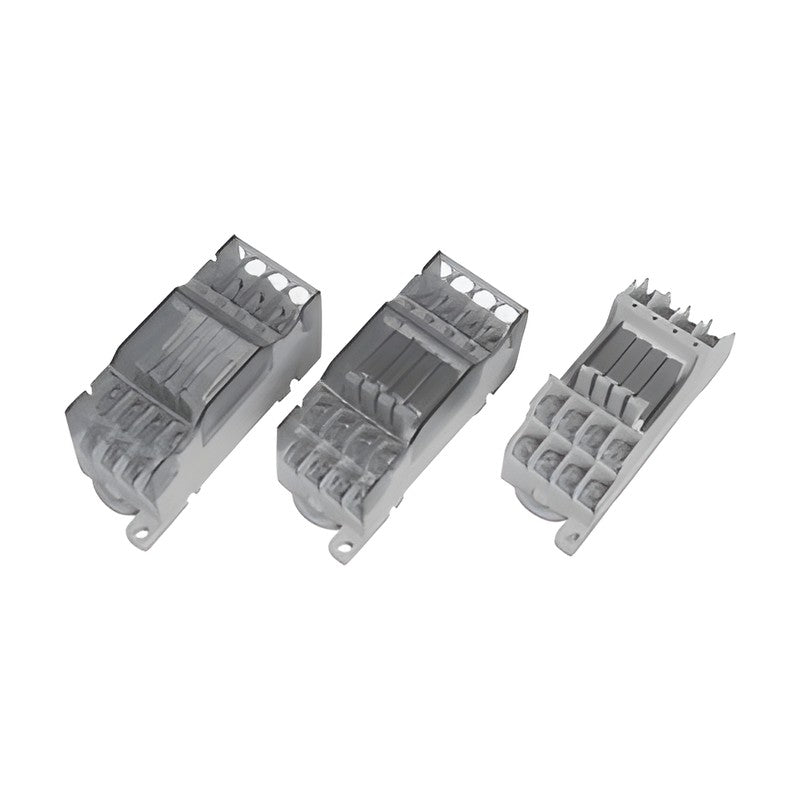

Samwon ACT R4T-M Series 4-Point Removable Socket Relay Terminals

4-point relay terminals with an integrated removable socket for 5 mm slim Panasonic PA-N or Takamisawa NY relays.

Key features

Integrated removable socket for 5 mm slim relays
Relays can be replaced without tools
Coil-side LEDs for operation check
DIN rail or screw mounting
Built-in common bar; common bars between units available
Compact 32.0 x 73.0 mm

Specifications

Material	Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Applicable Wire	AWG 22-16 (1.5 mm2 max.)
Terminal Screw	M3 x 6L
Screw Torque	7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature	-10 to +50 C (no condensation)
Points	4 (1a x 4)
Coil Rated Voltage	24 V DC
Common	Input side individual power; Output side individual COM (4P shorting bar included)
Interface	Screw terminal, 7.62 mm pitch
Dimensions	32.0 x 73.0 mm (W x D)
Mounting	Screw / DIN rail (channel)
Included	4-pole shorting bar (2 pcs)

R4T-YC-M		Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC)
R4T-16P-M		Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC)

Relay Interface TerminalsSamwon ACT

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R4T-M Series 4-Point Removable Socket Relay Terminals

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (2)

R4T-YC-M, R4T-16P-M
