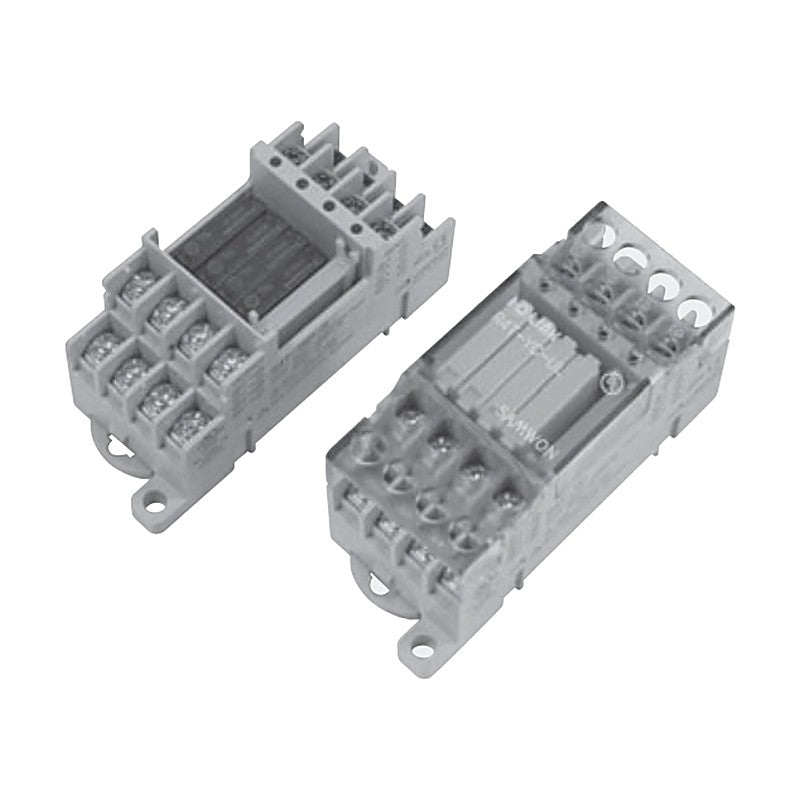

Samwon ACT R4T-S Series 4-Point Individual Common Relay Terminals

Samwon ACT R4T-S Series 4-Point Individual Common Relay Terminals

Compact 4-point general-purpose relay terminals with individual commons, fitted with Takamisawa NYP or Panasonic PA-N 5 mm slim relays.

Key features

  • Choice of Takamisawa or Panasonic relay
  • Long-life, high-reliability relays suited to inductive loads, frequent switching and noisy loads
  • Contact LEDs for operation check
  • DIN rail or screw mounting
  • Relay replacement tool included
  • Built-in common bar

Specifications

Material Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Terminal Screw M3 x 6L
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature -10 to +50 C (no condensation)
Points 4 (1a x 4)
Coil Rated Voltage 24 V DC
Load Rating CE 250 V AC, 30 V DC / 5 A; UL 250 V AC, 30 V DC / 3 A
Common Coil side individual power; Contact side individual COM (4P shorting bar included)
Interface Screw terminal, 7.62 mm pitch
Dimensions 32.0 x 71.0 mm (W x D)
Mounting Screw / DIN rail (channel)
R4T-YC-UL Relay: Takamisawa NYP-24W-K | Certification: UL
R4T-16P-S Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC) | Certification: UL, CE
