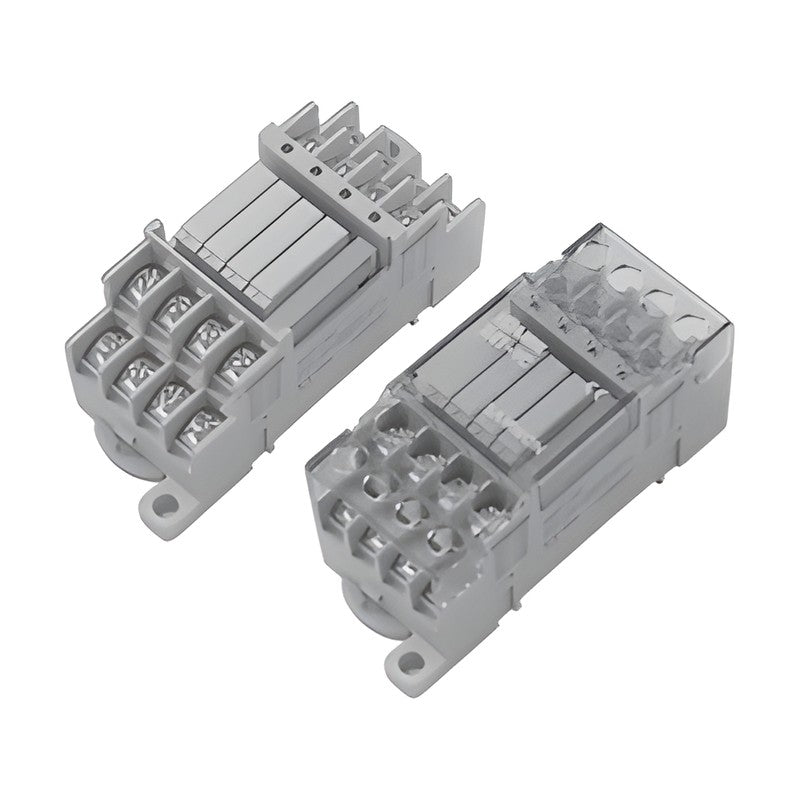

Samwon ACT R4T-YC Ultra-Compact 4-Point Relay Terminal (Takamisawa NY)

Ultra-compact 4-point general-purpose relay terminal (32.3 x 67.0 mm) fitted with Takamisawa NY 5 mm slim relays.

Key features

Ultra-compact 4-point relay terminal, 32.3 mm wide and 67.0 mm long. 5 mm Takamisawa NY long-life relays suited to inductive and frequently switched loads
Contact LEDs for operation check
DIN rail or screw mounting; relay replacement tool included
Built-in common bar

Specifications

Material	Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Applicable Wire	AWG 22-16 (1.5 mm2 max.)
Terminal Screw	M3 x 6L
Screw Torque	7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature	-10 to +50 C (no condensation)
Points	4 (1a x 4)
Coil Rated Voltage	24 V DC
Load Rating	250 V AC, 30 V DC / 5 A
Relay	Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC)
Common	Coil side individual power; Contact side individual COM (4P shorting bar included)
Interface	Screw terminal, 7.62 mm pitch
Dimensions	32.0 x 71.0 mm (W x D)

R4T-YC
