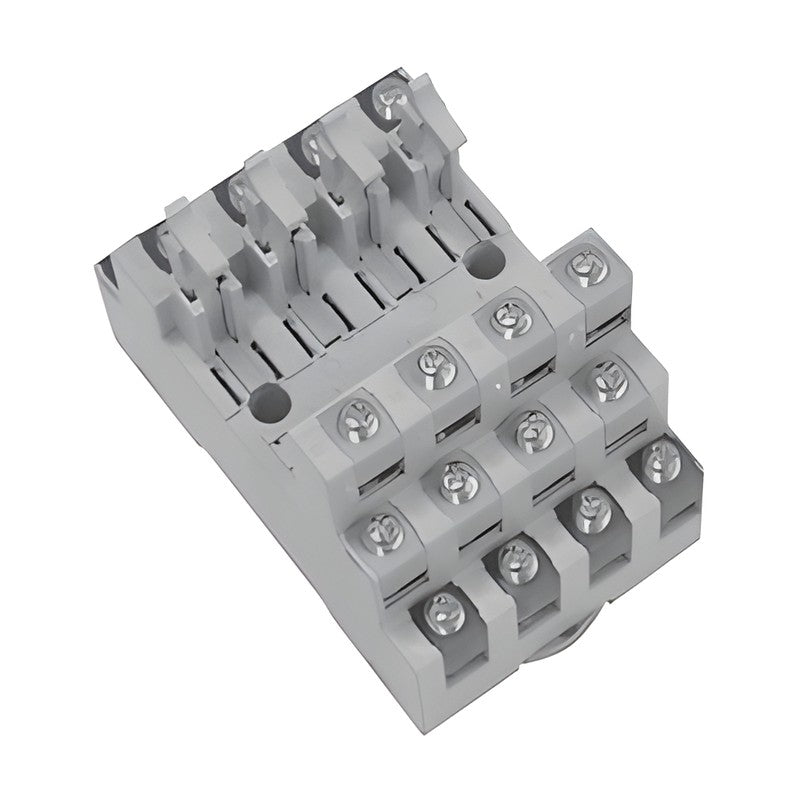

Samwon ACT R4W-DC24VC 4-Point Hybrid Relay Terminal Socket

4-point hybrid relay terminal socket that accepts SHN, G2R or CM-series relays and SSRs chosen by the user (relays sold separately).

Key features

Accepts SHN, G2R or CM-series contactless relays selected per I/O
Lever for easy relay removal; self-lifting terminal screws for ring terminals
Brass conductor plates rated 10 A instead of PCB traces
Safety cover over conductive parts. 4P short bars (4 pcs) included

Specifications

Allowable Current	10 A
Insulation Resistance	1000 Mohm (500 V)
Coil Surge Absorber	Diode 1 A / 700 V
Reverse Polarity Protection	Diode 1 A / 700 V
Applicable Wire	AWG22-16 (1.5 mm2 max)
Terminal Screw	M3.5 x 10L
Compatible Relays	CM-Z202D, CM-G22124, SHN12024, G2R-1-S DC24V (sold separately)
Coil Voltage	24 V DC
Points	4
Coil Common	Individual power (4P short bar included)
Contact Common	Individual common (4P short bar included)
Interface	Screw terminal block, 13.5 mm pitch

R4W-DC24VC

Points: 4

Relay Interface TerminalsSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT R4W-DC24VC 4-Point Hybrid Relay Terminal Socket

Brand Samwon ACT·Relay Interface Terminals

Available part numbers (1)

R4W-DC24VC

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
