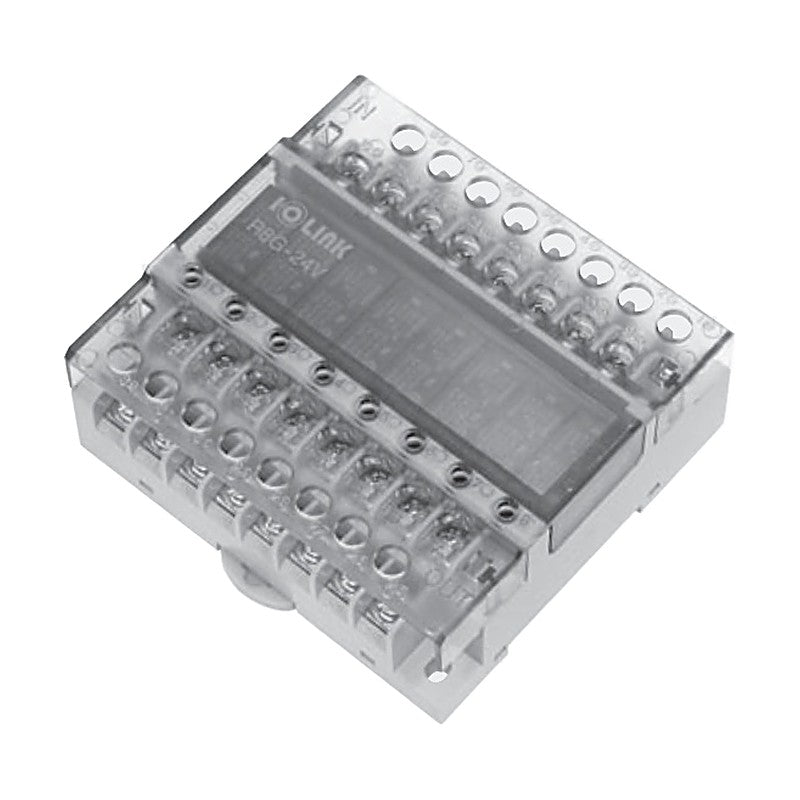

Samwon ACT R8G-24V 8-Point Relay Terminal with OMRON G6B Relay

Case-integrated 8-point relay board fitted with OMRON G6B-1174P-FD-US relays for inductive and capacitive loads.

Key features

Case-integrated 8-point relay board extends the 4-point design and saves assembly labour
OMRON G6B-1174P-FD-US long-life relays with AgSnIn contacts resistant to surge
Surge-absorbing diode on the coil side
Protective cover fitted in accordance with product liability requirements
Two common short bars included

Specifications

Relay	OMRON G6B-1174P-FD-US DC24V (SPST-NO, 1a)
Contact Rating	5 A 250 V AC / 5 A 30 V DC (resistive)
Coil Voltage	24 V DC
Points	8 (1a x 8)
Coil Common	Individual power (8P short bar included)
Contact Common	Individual common (8P short bar included)
Interface	Screw terminal block, 8.5 mm pitch
Terminal Screw	M3.5 x 8L
Dimensions (W x D)	84.2 x 77.4 mm
Mounting	Screw / DIN rail (channel)

R8G-24V

Points: 8
