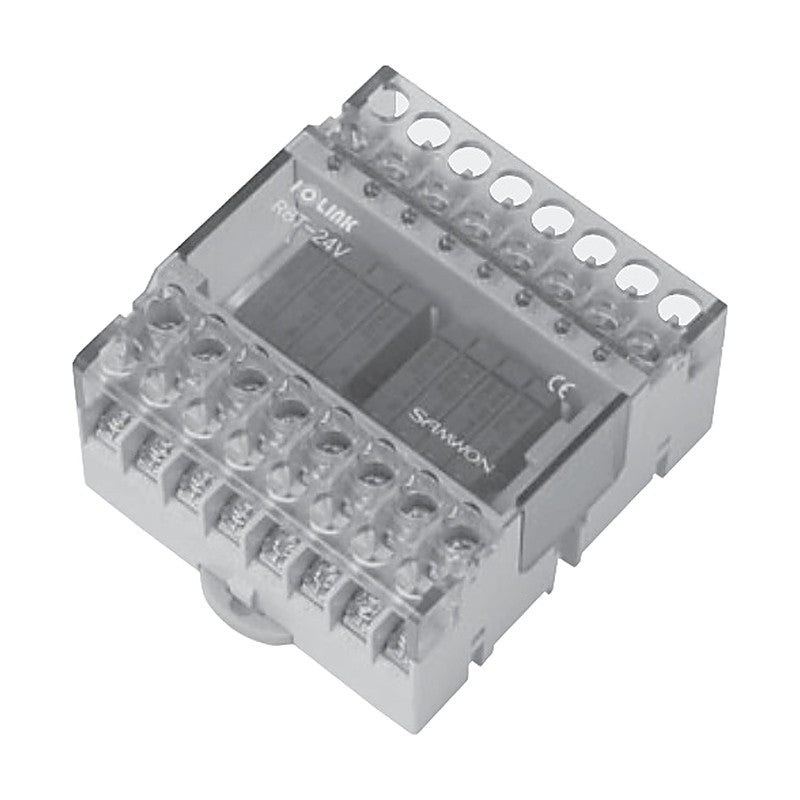

Samwon ACT R8T Series 8-Point Relay Terminals

Compact 8-point (4+4) general-purpose relay terminals fitted with Takamisawa NYP or Panasonic PA-N 5 mm slim relays.

Key features

Choice of Takamisawa or Panasonic relay
Compact 62.7 (W) x 67.0 (D) mm 8-point terminal
Long-life relays suited to inductive loads and frequent switching
Contact LEDs for operation check
Channel or screw mounting; relay replacement tool included
Built-in common bar

Specifications

Material	Case: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t / 2 oz
Terminal Screw	M3 x 6L
Screw Torque	7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature	-10 to +50 C (no condensation)
Applicable Wire	AWG 22-16 (1.5 mm2 max.)
Points	8 (1a x 8)
Coil Rated Voltage	24 V DC
Common	Coil side individual power; Contact side individual COM (8P shorting bar included)
Interface	Screw terminal, 7.62 mm pitch
Dimensions	62.7 x 67.0 mm (W x D)
Mounting	Screw / DIN rail (channel)
Included	8-pole shorting bar (2 pcs)

R8T-YC		Relay: Takamisawa NY-24W-K (1a, 5 A 250 V AC / 5 A 30 V DC)
R8T-24V		Relay: Panasonic APAN3124 (1 Form A, 5 A 250 V AC / 5 A 30 V DC)
