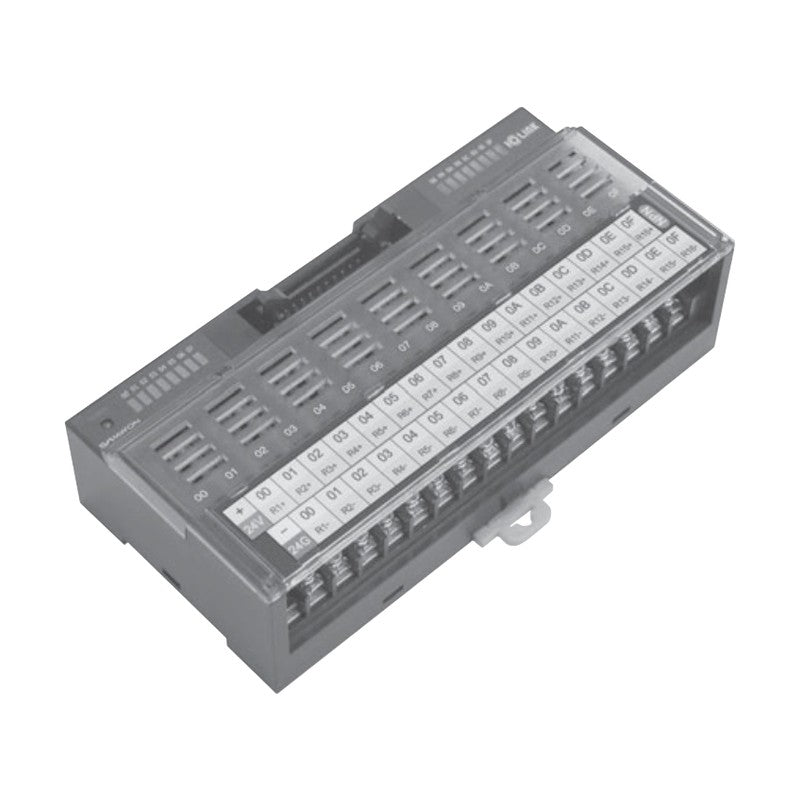

Samwon ACT S16C 16-Point PhotoMOS Power Relay Terminal

Connector-type 16-point contactless power relay terminal fitted with PANASONIC PhotoMOS AQZ202D relays for DC loads.

Key features

Power PhotoMOS relays rated 60 V 2.7 A on the load side
Wide input voltage range 4-30 V DC for 5 V, 12 V and 24 V systems
NPN and PNP versions to match controller common polarity
Contact LEDs, channel mounting and relay replacement tool included
Built-in common bars; socket-mounted relays are easy to replace

Specifications

Case	Modified PPO
PCB	Epoxy 1.6t / 2 oz
Applicable Wire	AWG22-16 (1.5 mm2 max)
Ambient Temperature	-10 to +50 C (no condensation)
Relay	PANASONIC PhotoMOS AQZ202D
Load Voltage	60 V max. (48 V max. recommended)
Continuous Load Current	2.7 A
Peak Load Current	9.0 A
I/O Isolation	2,500 V AC
Turn-On Time	5.8 ms typ. / 10 ms max.
Points	16 (1a x 16)
Input Voltage	5-24 V DC

S16C-NC-202D		Coil Common: NPN (+COM)
S16C-PC-202D		Coil Common: PNP (-COM)
