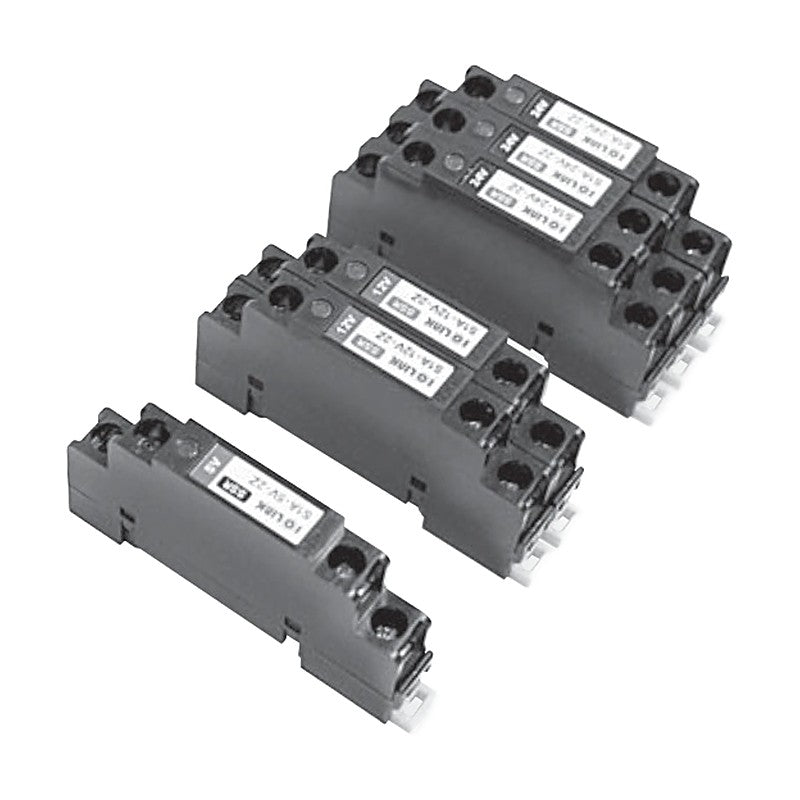

Samwon ACT S1A 1-Point SSR Board, DC Input / AC Load, 2 A

10 mm wide 1-point solid state relay board with PANASONIC AQ-G SSR for switching AC loads up to 2 A from DC control signals.

Key features

Solid state relay without arcing, chattering or bounce for long life
Input voltages of 5 V, 12 V and 24 V DC available
Photocoupler isolation between input and output keeps load noise from the input side
Zero-cross function suppresses inrush current, suited to inductive loads. 4P short bar supplied (5 pcs per 10 units)

Specifications

Case	Modified PPO
PCB	Epoxy 1.6t / 2 oz
Applicable Wire	AWG22-16 (1.5 mm2 max)
Ambient Temperature	-10 to +50 C (no condensation)
Relay	PANASONIC AQ-G SSR
Load Voltage	75-264 V AC, 45-65 Hz
Max. Load Current	2 A AC (at 25 C)
Non-Repetitive Surge Current	30 A (one cycle at 60 Hz)
Breakdown Voltage	3,000 Vrms 1 min (input-output)
Points	1 (1a x 1)
Coil Common	Individual power (short bar included)
Contact Common	Individual common (short bar included)

S1A-5V-2Z		Input Voltage: 5 V DC \| SSR: AQG22105
S1A-12V-2Z		Input Voltage: 12 V DC \| SSR: AQG22112
S1A-24V-2Z		Input Voltage: 24 V DC \| SSR: AQG22124
