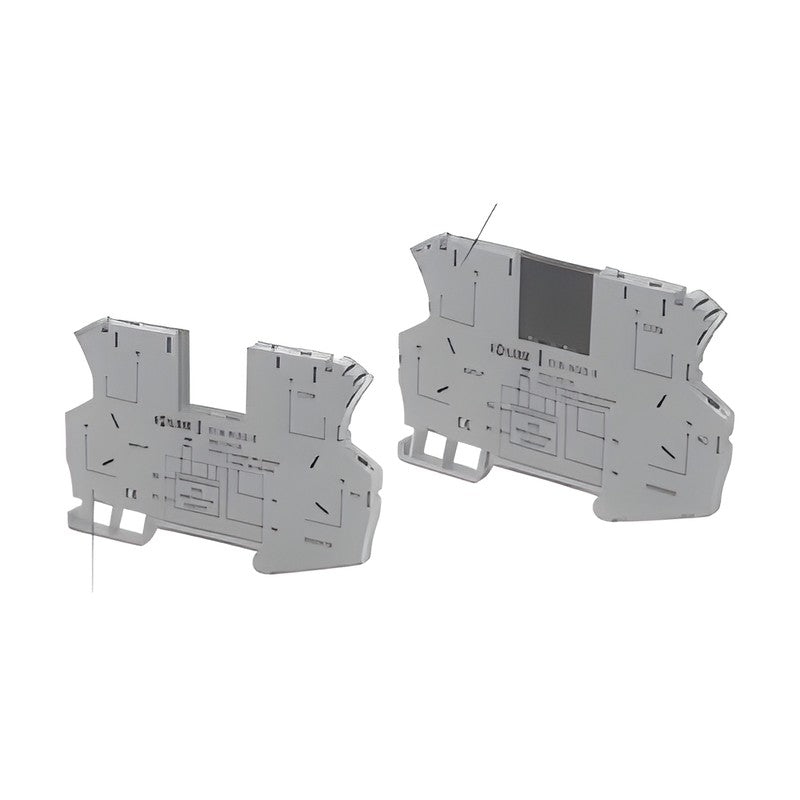

Samwon ACT S1A-E 6.2 mm 1-Point SSR Socket, Push-In, AC Load

Samwon ACT S1A-E 6.2 mm 1-Point SSR Socket, Push-In, AC Load

6.2 mm wide 1 Form A push-in relay socket for PANASONIC AQ-G SSRs (DC input / AC load), sold as socket or socket-plus-SSR set.

Key features

  • Economical relay terminal for PANASONIC AQG DC-input / AC-load SSRs
  • Push-in screwless terminals wire faster than ring or fork terminals
  • Leaf-spring terminal structure resists vibration
  • Socket with integrated relay release function; channel mounting
  • Contact LED shows operating status

Specifications

Relay PANASONIC AQ-G SSR
Load Voltage 75-264 V AC, 45-65 Hz
Max. Load Current 2 A AC (at 25 C)
Non-Repetitive Surge Current 30 A (one cycle at 60 Hz)
Breakdown Voltage 3,000 Vrms 1 min (input-output)
Width 6.2 mm
Dimensions (W x D) 6.2 x 91.6 mm
Socket Rated Load 250 V 5 A
Socket Input Voltage 5-30 V DC
Dielectric Strength 3,000 V / 1 min
Strip Length 10 mm
Applicable Wire AWG21-14 (0.5-2.5 mm2)
S1A-AQG-E Content: Socket only (for AQG221xx SSR)
S1A-5V-2Z-E Content: Socket S1A-AQG-E + SSR AQG22105 | Input Voltage: 5 V DC
S1A-12V-2Z-E Content: Socket S1A-AQG-E + SSR AQG22112 | Input Voltage: 12 V DC
S1A-24V-2Z-E Content: Socket S1A-AQG-E + SSR AQG22124 | Input Voltage: 24 V DC
SSR Interface TerminalsSamwon ACT
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT S1A-E 6.2 mm 1-Point SSR Socket, Push-In, AC Load

Brand Samwon ACT·SSR Interface Terminals

Available part numbers (4)

S1A-AQG-E, S1A-5V-2Z-E, S1A-12V-2Z-E, S1A-24V-2Z-E

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S1A-AQG-EContent: Socket only (for AQG221xx SSR)
S1A-5V-2Z-EContent: Socket S1A-AQG-E + SSR AQG22105 | Input Voltage: 5 V DC
S1A-12V-2Z-EContent: Socket S1A-AQG-E + SSR AQG22112 | Input Voltage: 12 V DC
S1A-24V-2Z-EContent: Socket S1A-AQG-E + SSR AQG22124 | Input Voltage: 24 V DC
