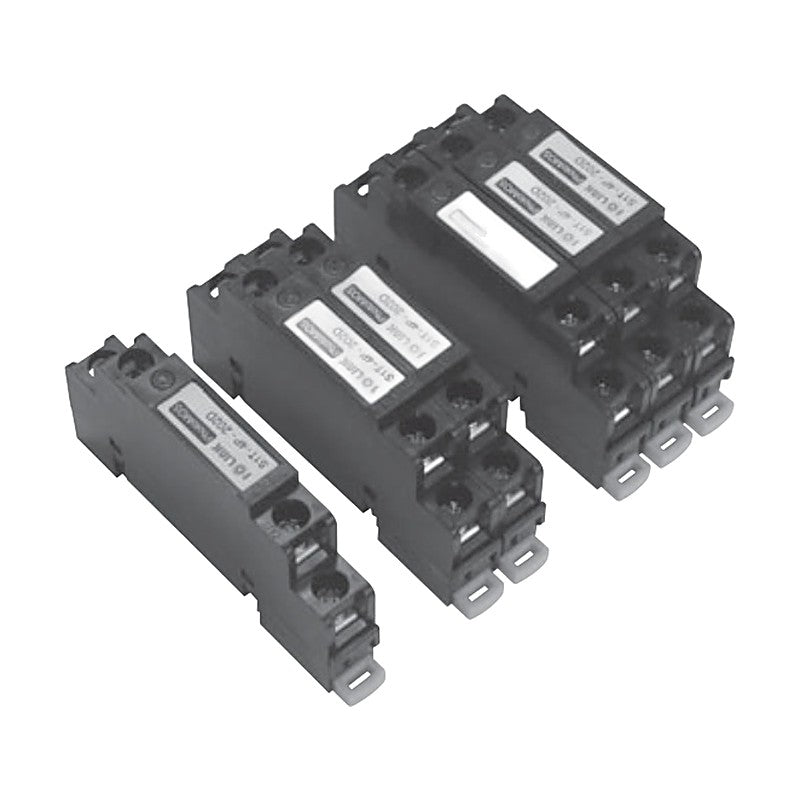

Samwon ACT S1T-4P-202D 1-Point PhotoMOS Relay Terminal, 2.7 A

10 mm wide 1-point contactless relay terminal fitted with a PANASONIC PhotoMOS AQZ202D relay for DC loads up to 60 V 2.7 A.

Key features

Contactless, long-life design with semi-permanent service life
Power PhotoMOS relay rated 60 V 2.7 A on the load side
Contact LED shows operating status. 10 mm width for mounting in narrow spaces; channel mounting
Built-in common bar simplifies wiring
For loads with high switching frequency or fast response

Specifications

Case	Modified PPO
PCB	Epoxy 1.6t / 2 oz
Applicable Wire	AWG22-16 (1.5 mm2 max)
Ambient Temperature	-10 to +50 C (no condensation)
Relay	PANASONIC PhotoMOS AQZ202D
Load Voltage	60 V max. (48 V max. recommended)
Continuous Load Current	2.7 A
Peak Load Current	9.0 A
I/O Isolation	2,500 V AC
Turn-On Time	5.8 ms typ. / 10 ms max.
Points	1 (1a x 1)
Input Voltage	5-24 V DC

S1T-4P-202D

Relay: AQZ202D

SSR Interface TerminalsSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT S1T-4P-202D 1-Point PhotoMOS Relay Terminal, 2.7 A

Brand Samwon ACT·SSR Interface Terminals

Available part numbers (1)

S1T-4P-202D

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
