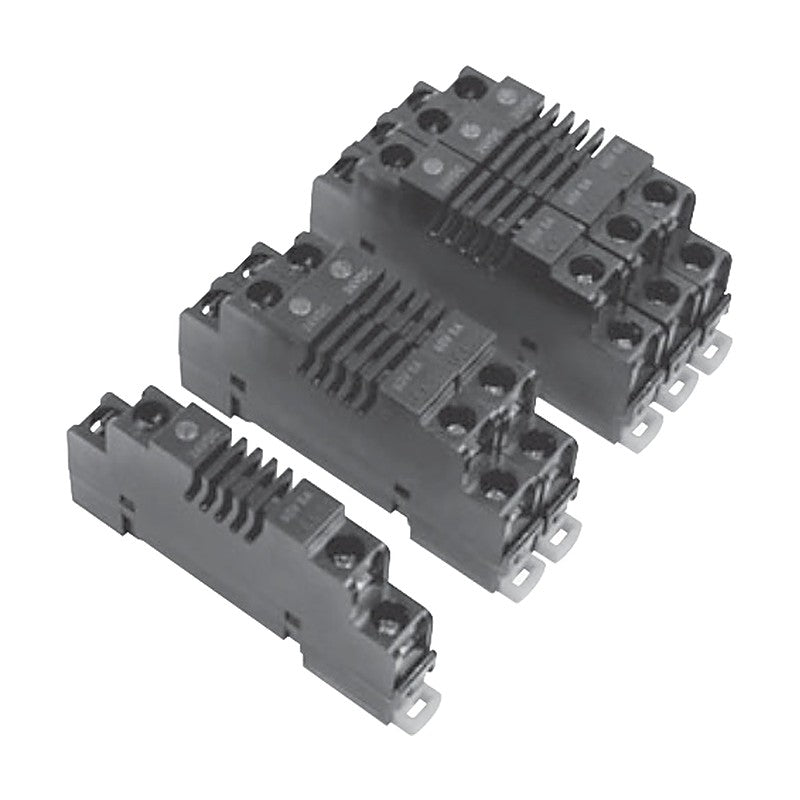

Samwon ACT S1T-4P-202G 1-Point PhotoMOS Power Relay Terminal, 5 A

10 mm wide 1-point contactless power relay terminal fitted with a PANASONIC PhotoMOS AQZ202G relay for DC loads up to 60 V 5 A.

Key features

Power PhotoMOS relay rated 60 V 5 A on the load side for heavy-duty control
Contactless, long-life design with semi-permanent service life
Contact LED shows operating status. 10 mm width, mounts on channel rail in narrow spaces
Built-in common bar simplifies wiring
For loads with high switching frequency or fast response

Specifications

Case	Modified PPO
PCB	Epoxy 1.6t / 2 oz
Applicable Wire	AWG22-16 (1.5 mm2 max)
Ambient Temperature	-10 to +50 C (no condensation)
Relay	PANASONIC PhotoMOS AQZ202G
Points	1 (1a x 1)
Input Voltage	24 V DC
Load Rating	60 V, 5 A
Coil Common	Individual power (short bar included)
Contact Common	Individual common (short bar included)
Interface	Screw terminal block, M3 screw
Dimensions (W x D)	10.0 x 67.0 mm

S1T-4P-202G

Relay: AQZ202G

SSR Interface TerminalsSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT S1T-4P-202G 1-Point PhotoMOS Power Relay Terminal, 5 A

Brand Samwon ACT·SSR Interface Terminals

Available part numbers (1)

S1T-4P-202G

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
