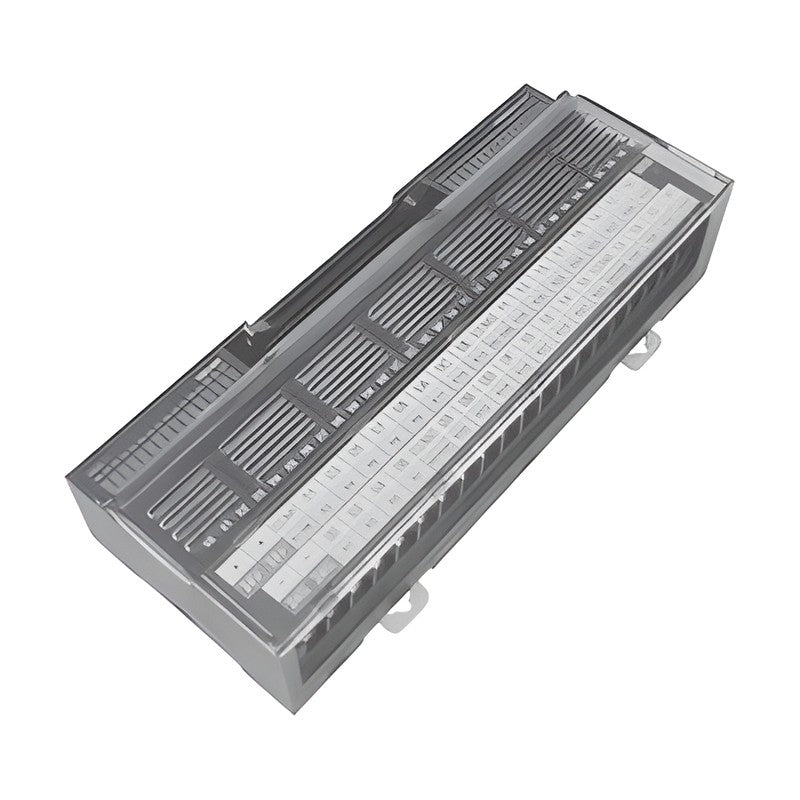

Samwon ACT S32C 32-Point PhotoMOS Power Relay Terminal

Samwon ACT S32C 32-Point PhotoMOS Power Relay Terminal

Connector-type 32-point contactless power relay terminal fitted with PANASONIC PhotoMOS AQZ202D relays for DC 5-48 V loads.

Key features

  • Power PhotoMOS relays rated 60 V 2.7 A, suited to DC 5 V, 12 V, 24 V and 48 V loads
  • NPN and PNP versions to match controller common polarity
  • Contact LEDs, channel mounting and relay replacement tool included
  • Socket-mounted relays are easy to replace
  • Standard connection cables available for major PLC brands
  • UL-certified versions available

Specifications

Case Modified PPO
PCB Epoxy 1.6t / 2 oz
Applicable Wire AWG22-16 (1.5 mm2 max)
Ambient Temperature -10 to +50 C (no condensation)
Relay PANASONIC PhotoMOS AQZ202D
Load Voltage 60 V max. (48 V max. recommended)
Continuous Load Current 2.7 A
Peak Load Current 9.0 A
I/O Isolation 2,500 V AC
Turn-On Time 5.8 ms typ. / 10 ms max.
Points 32 (1a x 32)
Input Voltage 24 V DC
S32C-NT-202D Coil Common: NPN (+COM) | Certification: None | Rated Load: 60 V, 2.7 A
S32C-PT-202D Coil Common: PNP (-COM) | Certification: None | Rated Load: 60 V, 2.7 A
S32C-NT-202D-UL Coil Common: NPN (+COM) | Certification: UL | Rated Load: 24 V DC, 1.6 A/point, 8 A/COM
S32C-PT-202D-UL Coil Common: PNP (-COM) | Certification: UL | Rated Load: 24 V DC, 1.6 A/point, 8 A/COM
SSR Interface TerminalsSamwon ACT
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT S32C 32-Point PhotoMOS Power Relay Terminal

Brand Samwon ACT·SSR Interface Terminals

Available part numbers (4)

S32C-NT-202D, S32C-PT-202D, S32C-NT-202D-UL, S32C-PT-202D-UL

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S32C-NT-202DCoil Common: NPN (+COM) | Certification: None | Rated Load: 60 V, 2.7 A
S32C-PT-202DCoil Common: PNP (-COM) | Certification: None | Rated Load: 60 V, 2.7 A
S32C-NT-202D-ULCoil Common: NPN (+COM) | Certification: UL | Rated Load: 24 V DC, 1.6 A/point, 8 A/COM
S32C-PT-202D-ULCoil Common: PNP (-COM) | Certification: UL | Rated Load: 24 V DC, 1.6 A/point, 8 A/COM
