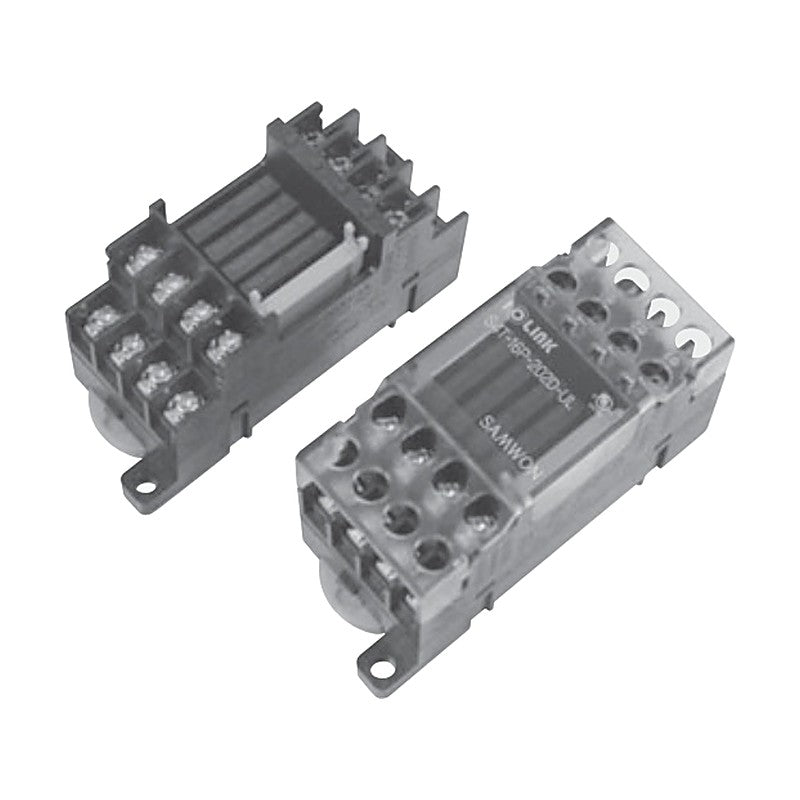

Samwon ACT S4T 4-Point PhotoMOS Power Relay Terminal

4-point contactless power relay terminal fitted with PANASONIC PhotoMOS AQZ202D relays for DC loads up to 60 V 2.7 A.

Key features

Power PhotoMOS relays rated 60 V 2.7 A on the load side
Wide input voltage range 4-30 V DC for 5 V, 12 V and 24 V systems
Contact LEDs and built-in common bars
Socket-mounted relays are easy to replace (relay replacement tool included)
UL-certified version available

Specifications

Case	Modified PPO
PCB	Epoxy 1.6t / 2 oz
Applicable Wire	AWG22-16 (1.5 mm2 max)
Ambient Temperature	-10 to +50 C (no condensation)
Relay	PANASONIC PhotoMOS AQZ202D
Load Voltage	60 V max. (48 V max. recommended)
Continuous Load Current	2.7 A
Peak Load Current	9.0 A
I/O Isolation	2,500 V AC
Turn-On Time	5.8 ms typ. / 10 ms max.
Points	4 (1a x 4)
Input Voltage	5-24 V DC

S4T-16P-202D		Certification: CE \| Rated Load: 60 V, 2.7 A
S4T-16P-202D-UL		Certification: UL \| Rated Load: 24 V DC, 2.0 A

SSR Interface TerminalsSamwon ACT

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT S4T 4-Point PhotoMOS Power Relay Terminal

Brand Samwon ACT·SSR Interface Terminals

Available part numbers (2)

S4T-16P-202D, S4T-16P-202D-UL

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
