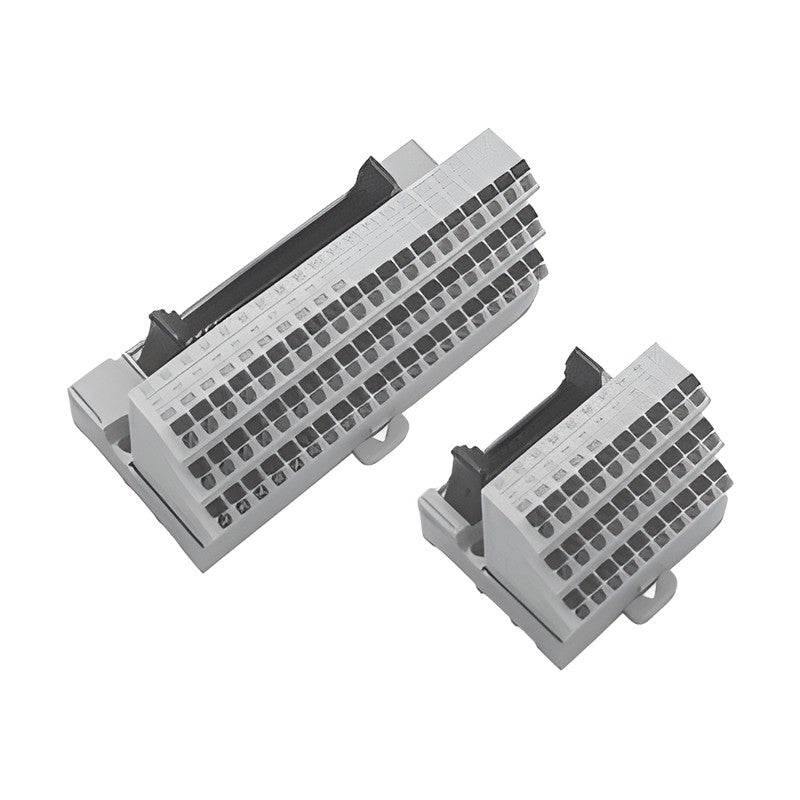

Samwon ACT SA-C Series Push-In Screwless Interface Terminal Blocks with Integrated Common

Samwon ACT SA-C Series Push-In Screwless Interface Terminal Blocks with Integrated Common

Push-in screwless pluggable interface terminal blocks with an integrated 10- or 20-pole common terminal section.

Key features

  • Push-in pluggable terminal blocks for reliable wiring under vibration
  • Integrated 10-pole (SA-1H20CA) or 20-pole (SA-1H40CA) common terminals save cost and space
  • Mounts on DIN rail or by screws
  • Flame-retardant Noryl material
  • Suited to machine tools, ships, semiconductor and LCD/PDP equipment

Specifications

Rated Voltage 125 V AC, 24 V DC
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire Solid 0.5-1.5 mm2; Stranded UL 17-22 AWG / IEC 1.0 mm2
Strip Length 8-9 mm
Operating Temperature -10 to +50 C (no condensation)
Rated Current I/O 1 A; Common 10 A (total)
Pitch 5.0 mm
Mounting Screw / DIN rail (channel)
Certification CE
Applicable Tool Flat screwdriver 2.6 x 0.35 mm
SA-1H20CA I/O points: 20 | Common points: 10 (left 5P +, right 5P -) | Connector: HIF3BA-20PA-2.54DSA or XG4A-2031 | Cable connector: HIF3BA-20D-2.54R or XG4M-2030 | Dimensions (W x D): 55.0 x 48.6 mm
SA-1H40CA I/O points: 40 | Common points: 20 (left 10P +, right 10P -) | Connector: HIF3BA-40PA-2.54DSA or XG4A-4031 | Cable connector: HIF3BA-40D-2.54R or XG4M-4030 | Dimensions (W x D): 105.0 x 48.6 mm
Interface Terminal BlocksSamwon ACT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SA-C Series Push-In Screwless Interface Terminal Blocks with Integrated Common

Brand Samwon ACT·Interface Terminal Blocks

Available part numbers (2)

SA-1H20CA, SA-1H40CA

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SA-1H20CAI/O points: 20 | Common points: 10 (left 5P +, right 5P -) | Connector: HIF3BA-20PA-2.54DSA or XG4A-2031 | Cable connector: HIF3BA-20D-2.54R or XG4M-2030 | Dimensions (W x D): 55.0 x 48.6 mm
SA-1H40CAI/O points: 40 | Common points: 20 (left 10P +, right 10P -) | Connector: HIF3BA-40PA-2.54DSA or XG4A-4031 | Cable connector: HIF3BA-40D-2.54R or XG4M-4030 | Dimensions (W x D): 105.0 x 48.6 mm
