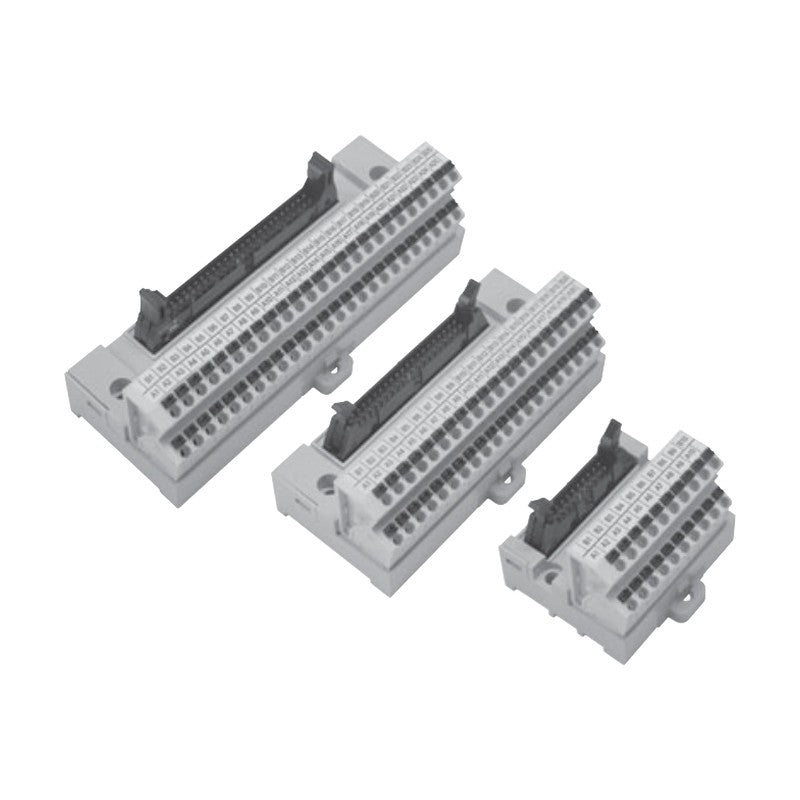

Samwon ACT SA Series Push-Type Screwless Interface Terminal Blocks

Samwon ACT SA Series Push-Type Screwless Interface Terminal Blocks

5.0 mm pitch push-type screwless pluggable interface terminal blocks for PLC I/O cables in high-vibration environments.

Key features

  • Push-type screwless pluggable terminal blocks for reliable wiring under vibration. 5 mm wide terminals make the product about 1/3 smaller than Y/O-type blocks (40-pin: 107.5 x 48.0 mm)
  • Mounts on DIN rail or by screws
  • Flame-retardant Noryl material
  • Uses the same PLC cables as the XTB series
  • Models without release button available on request

Specifications

Rated Voltage 125 V AC / 24 V DC
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire Solid 0.5-1.5 mm2; Stranded UL 17-22 AWG / IEC 1.0 mm2
Strip Length 8-9 mm
Operating Temperature -10 to +50 C (no condensation)
Rated Current 1 A
Pitch 5.0 mm
Mounting Screw / DIN rail (channel)
SA-1H20S Poles: 20 | Connector: MIL HIF3BA-20PA-2.54DSA | Cable connector: HIF3BA-20D-2.54R | Dimensions (W x D): 57.4 x 48.0 mm | Certification: UL, CE
SA-1H26S Poles: 26 | Connector: MIL HIF3BA-26PA-2.54DSA | Cable connector: HIF3BA-26D-2.54R | Dimensions (W x D): 72.4 x 48.0 mm | Certification: UL, CE
SA-1H40S Poles: 40 | Connector: MIL HIF3BA-40PA-2.54DSA or XG4A-4031 | Cable connector: HIF3BA-40D-2.54R or XG4M-4030 | Dimensions (W x D): 107.5 x 48.0 mm | Certification: UL, CE
SA-4F40S Poles: 40 | Connector: FCN 360 FCN-364P040-AU or 1747053-1 | Cable connector: FCN-367J040-AU or 1903404-1 | Dimensions (W x D): 107.5 x 48.0 mm | Certification: CE
SA-1H50S Poles: 50 | Connector: MIL HIF3BA-50PA-2.54DSA | Cable connector: HIF3BA-50D-2.54R | Dimensions (W x D): 132.2 x 48.0 mm | Certification: UL, CE
SA-1H50B Poles: 50 | Connector: MIL HIF3BB-50PA-2.54DSA | Cable connector: HIF3BB-50D-2.54R | Dimensions (W x D): 132.2 x 48.0 mm | Certification: UL, CE
Interface Terminal BlocksSamwon ACT
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SA Series Push-Type Screwless Interface Terminal Blocks

Brand Samwon ACT·Interface Terminal Blocks

Available part numbers (6)

SA-1H20S, SA-1H26S, SA-1H40S, SA-4F40S, SA-1H50S, SA-1H50B

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SA-1H20SPoles: 20 | Connector: MIL HIF3BA-20PA-2.54DSA | Cable connector: HIF3BA-20D-2.54R | Dimensions (W x D): 57.4 x 48.0 mm | Certification: UL, CE
SA-1H26SPoles: 26 | Connector: MIL HIF3BA-26PA-2.54DSA | Cable connector: HIF3BA-26D-2.54R | Dimensions (W x D): 72.4 x 48.0 mm | Certification: UL, CE
SA-1H40SPoles: 40 | Connector: MIL HIF3BA-40PA-2.54DSA or XG4A-4031 | Cable connector: HIF3BA-40D-2.54R or XG4M-4030 | Dimensions (W x D): 107.5 x 48.0 mm | Certification: UL, CE
SA-4F40SPoles: 40 | Connector: FCN 360 FCN-364P040-AU or 1747053-1 | Cable connector: FCN-367J040-AU or 1903404-1 | Dimensions (W x D): 107.5 x 48.0 mm | Certification: CE
SA-1H50SPoles: 50 | Connector: MIL HIF3BA-50PA-2.54DSA | Cable connector: HIF3BA-50D-2.54R | Dimensions (W x D): 132.2 x 48.0 mm | Certification: UL, CE
SA-1H50BPoles: 50 | Connector: MIL HIF3BB-50PA-2.54DSA | Cable connector: HIF3BB-50D-2.54R | Dimensions (W x D): 132.2 x 48.0 mm | Certification: UL, CE
