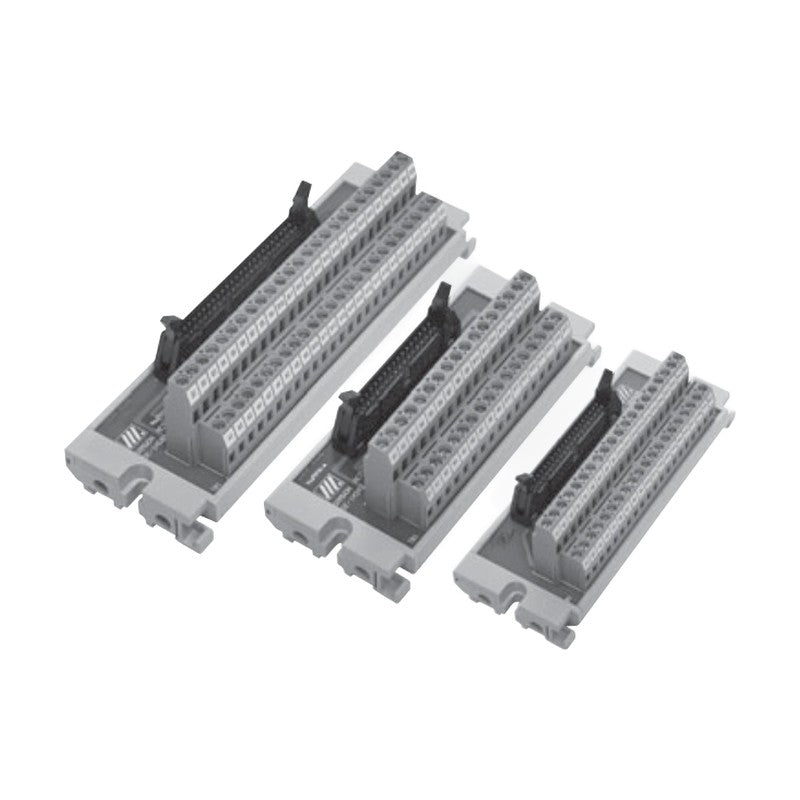

Samwon ACT SE Series Screw-Type Pin Terminal Interface Terminal Blocks

Samwon ACT SE Series Screw-Type Pin Terminal Interface Terminal Blocks

PCB-exposed interface terminal blocks fitted with DIN-standard pluggable screw-type pin terminals in a universal SPR-50B case.

Key features

  • Uses DIN-standard pin-type terminal blocks; pin count and connector can be customized
  • Universal board allows custom circuits beyond standard products
  • Universal SPR-50B PCB case
  • Mounts on DIN rail or by screws
  • Uses the same PLC cables as the XTB series

Specifications

Rated Voltage 125 V AC / 24 V DC
Rated Current 1 A
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire Bare wire 0.5-2.5 mm2 / AWG 20-13; Ferrule UL 17-22 AWG / IEC 1.0 mm2
Strip Length 7 mm
Screw Torque 0.5 N.m (5 kgf.cm)
Operating Temperature -10 to +50 C (no condensation)
Material Terminal block: PA66; Pin header: Cu alloy / tin plated; Base: PVC; Cover: Modified PPO; PCB: Epoxy 1.6 t
Mounting Screw / DIN rail (channel)
SE-1H20I Poles: 20 | Connector: MIL HIF3BA-20PA-2.54DSA | Cable connector: HIF3BA-20D-2.54R | Dimensions (W x D): 85.5 x 52.0 mm
SE-1H34I Poles: 34 | Connector: MIL HIF3BA-34PA-2.54DSA | Cable connector: HIF3BA-34D-2.54R | Dimensions (W x D): 123.5 x 52.0 mm
SE-1H40I Poles: 40 | Connector: MIL HIF3BA-40PA-2.54DSA or XG4A-4031 | Cable connector: HIF3BA-40D-2.54R or XG4M-4030 | Dimensions (W x D): 135.5 x 52.0 mm
SE-4F40I Poles: 40 | Connector: FCN 360 FCN-364P040-AU or 1747053-1 | Cable connector: FCN-367J040-AU or 1903404-1 | Dimensions (W x D): 135.5 x 52.0 mm
SE-1H50I Poles: 50 | Connector: MIL HIF3BA-50PA-2.54DSA | Cable connector: HIF3BA-50D-2.54R | Dimensions (W x D): 163.5 x 52.0 mm
SE-1H50IB Poles: 50 | Connector: MIL HIF3BB-50PA-2.54DSA | Cable connector: HIF3BB-50D-2.54R | Dimensions (W x D): 163.5 x 52.0 mm
Interface Terminal BlocksSamwon ACT
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SE Series Screw-Type Pin Terminal Interface Terminal Blocks

Brand Samwon ACT·Interface Terminal Blocks

Available part numbers (6)

SE-1H20I, SE-1H34I, SE-1H40I, SE-4F40I, SE-1H50I, SE-1H50IB

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SE-1H20IPoles: 20 | Connector: MIL HIF3BA-20PA-2.54DSA | Cable connector: HIF3BA-20D-2.54R | Dimensions (W x D): 85.5 x 52.0 mm
SE-1H34IPoles: 34 | Connector: MIL HIF3BA-34PA-2.54DSA | Cable connector: HIF3BA-34D-2.54R | Dimensions (W x D): 123.5 x 52.0 mm
SE-1H40IPoles: 40 | Connector: MIL HIF3BA-40PA-2.54DSA or XG4A-4031 | Cable connector: HIF3BA-40D-2.54R or XG4M-4030 | Dimensions (W x D): 135.5 x 52.0 mm
SE-4F40IPoles: 40 | Connector: FCN 360 FCN-364P040-AU or 1747053-1 | Cable connector: FCN-367J040-AU or 1903404-1 | Dimensions (W x D): 135.5 x 52.0 mm
SE-1H50IPoles: 50 | Connector: MIL HIF3BA-50PA-2.54DSA | Cable connector: HIF3BA-50D-2.54R | Dimensions (W x D): 163.5 x 52.0 mm
SE-1H50IBPoles: 50 | Connector: MIL HIF3BB-50PA-2.54DSA | Cable connector: HIF3BB-50D-2.54R | Dimensions (W x D): 163.5 x 52.0 mm
