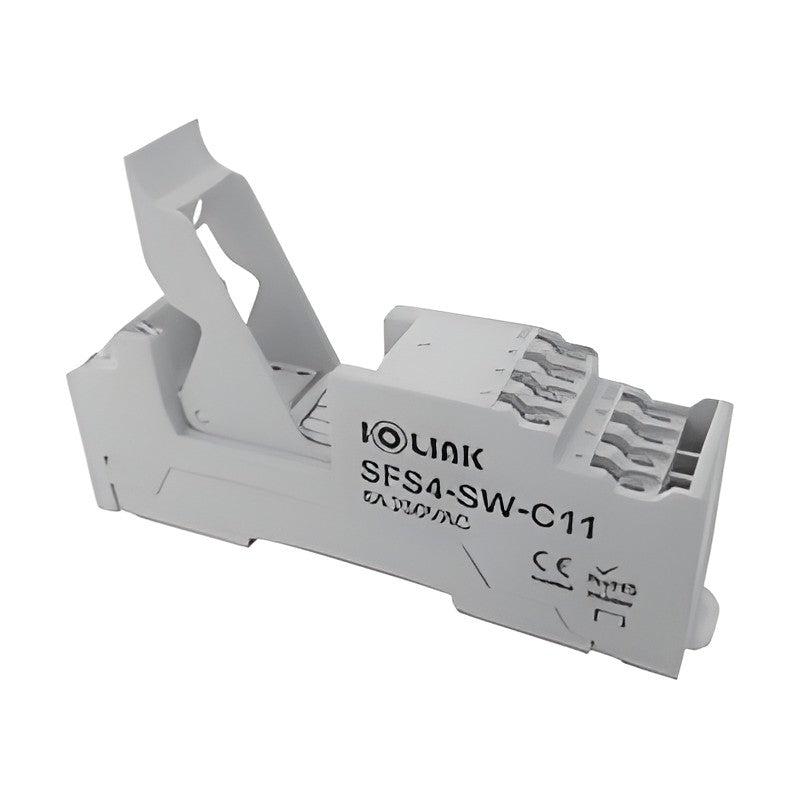

Samwon ACT SFS4-SW-C11 / SFS6-SW-C11 Push-In Safety Relay Sockets

DIN-rail push-in sockets with power LED and surge / reverse-voltage protection for PANASONIC SFS safety relays. 4-pole socket for SFS2 / SFS3 and 6-pole socket for SFS4 / SFS5 / SFS6 relays.

Key features

Push-in terminals, 8 mm strip length
LED power indication
Built-in surge and reverse-voltage protection circuit
Optional STB-C11 short bars for commoning

Specifications

Coil-Side Voltage	6-48 V DC
Rated Load	250 V AC, 6 A
Dielectric Strength (Coil-Contact)	2,500 V AC / 1 min
Applicable Wire	AWG22-16 (1.5 mm2 max)
Strip Length	8 mm
Power Indicator	LED
Protection Circuit	Surge, reverse voltage
Ambient Temperature	-25 to +55 C
Approvals	CE

SFS4-SW-C11		Poles: 4 \| Relays: SFS2, SFS3 \| Weight: 66 g
SFS6-SW-C11		Poles: 6 \| Relays: SFS4, SFS5, SFS6 \| Weight: 77 g

Relay SocketsSamwon ACT

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SFS4-SW-C11 / SFS6-SW-C11 Push-In Safety Relay Sockets

Brand Samwon ACT·Relay Sockets

Available part numbers (2)

SFS4-SW-C11, SFS6-SW-C11

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
