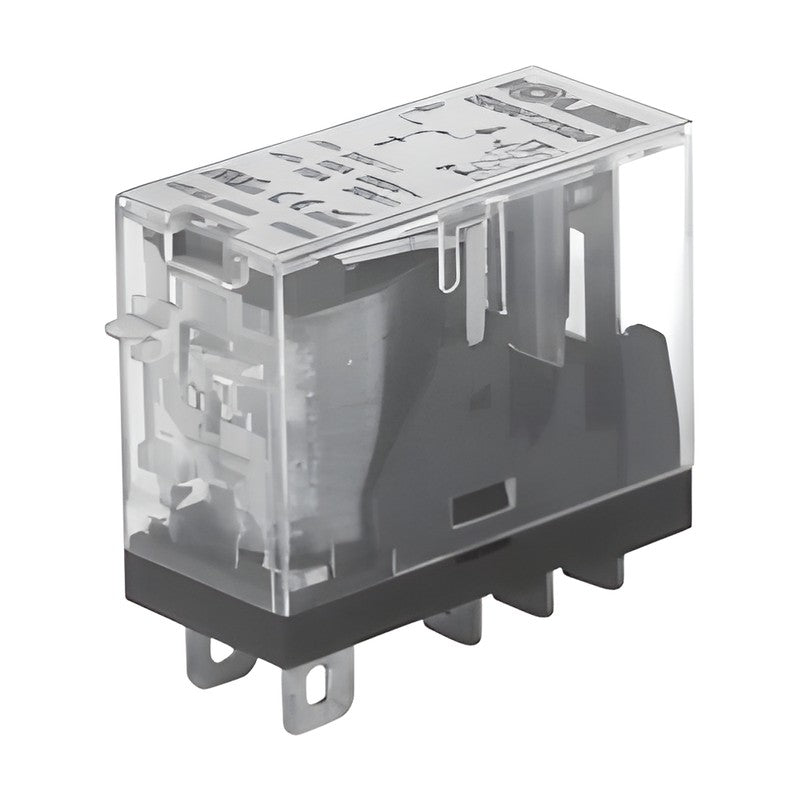

Samwon ACT SHN Power Relay, 1C 10 A / 2C 5 A, with LED

Samwon ACT SHN Power Relay, 1C 10 A / 2C 5 A, with LED

Slim plug-in power relay with 1C (10 A) or 2C (5 A) contacts, LED indicator and coil surge diode on DC types.

Key features

  • High capacity: 10 A with 1C contact, 5 A with 2C contacts (AC and DC loads)
  • Coil voltages 24 V DC, 230 V AC and 115 V AC
  • Built-in LED, plus diode for surge absorption on DC types
  • Dedicated 1C and 2C sockets available
  • RoHS compliant, cadmium-free and lead-free

Specifications

Pick-Up Voltage DC 75% max., AC 80% max. of rated voltage
Drop-Out Voltage DC 10% min., AC 30% min. of rated voltage
Maximum Voltage 110% of rated voltage
Contact Material Ag alloy
Operate / Release Time 20 ms max. / 10 ms max.
Dielectric Strength 5,000 V AC 1 min (contact-coil), 1,000 V AC (open contacts)
Electrical Life 1 x 10^5 operations min.
Mechanical Life 1 x 10^7 operations min.
Ambient Temperature -40 to +55 C
Mounting Plug-in
Weight Approx. 18 g
Approvals UL, CE
Samwon ACT SHN Power Relay, 1C 10 A / 2C 5 A, with LED - reference 2
SHN12324 Contacts: 1C, 10 A 250 V AC / 30 V DC | Coil Voltage: 24 V DC | Options: LED, diode
SHN111X1 Contacts: 1C, 10 A 250 V AC / 30 V DC | Coil Voltage: 115 V AC | Options: LED
SHN111Y2 Contacts: 1C, 10 A 250 V AC / 30 V DC | Coil Voltage: 230 V AC | Options: LED
SHN22324 Contacts: 2C, 5 A 250 V AC / 30 V DC | Coil Voltage: 24 V DC | Options: LED, diode
SHN211X1 Contacts: 2C, 5 A 250 V AC / 30 V DC | Coil Voltage: 115 V AC | Options: LED
SHN211Y2 Contacts: 2C, 5 A 250 V AC / 30 V DC | Coil Voltage: 230 V AC | Options: LED
