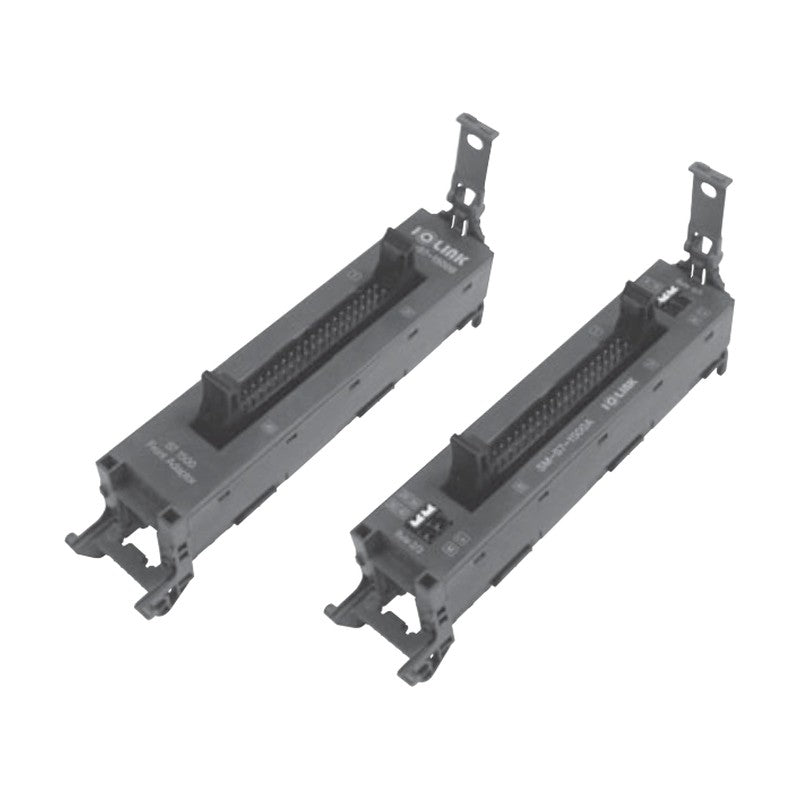

Samwon ACT SM-S7-1500 Front Connector Modules for Siemens S7-1500 PLC

Samwon ACT SM-S7-1500 Front Connector Modules for Siemens S7-1500 PLC

Front connector modules that plug into Siemens S7-1500 I/O cards and route the 40 I/O points to a MIL connector for cable connection to terminal blocks or relay terminals.

Key features

  • Replaces screw-type front connectors to save I/O wiring time
  • Connects by standard cable to I/O LINK terminal blocks and relay terminals
  • Additional power supply per byte (Byte 0-1, 2-3) common for varied loads (SM-S7-1500A)
  • Accepts analog card shielding element and power supply element
  • Dedicated standard cables (C40HH-xSU) for I/O and special cards

Specifications

Rated Voltage 30 V DC
Rated Current Mounted connector 1 A; Power connector 4 A (A type)
I/O Points 40
Connector MIL standard HIF3BA-40PA-2.54DSA or XG4A-4031
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire Solid 0.2-1.5 mm2; Stranded UL 24-16 AWG / IEC 1.5 mm2
Operating Temperature -10 to +50 C (no condensation)
Material Case: PBT; PCB: Epoxy 1.6 t; Terminal: LCP; Conductor: Cu alloy
Applicable PLC Siemens S7-1500 digital and analog I/O modules (6ES7 521/522/531/532 series)
SM-S7-1500A Auxiliary power: with (power terminal SPT-THR 1.5/2-V-3.5 x 2) | Use: Digital I/O
SM-S7-1500B Auxiliary power: none | Use: Digital I/O, Analog I/O
Connector Terminal BlocksSamwon ACT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SM-S7-1500 Front Connector Modules for Siemens S7-1500 PLC

Brand Samwon ACT·Connector Terminal Blocks

Available part numbers (2)

SM-S7-1500A, SM-S7-1500B

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SM-S7-1500AAuxiliary power: with (power terminal SPT-THR 1.5/2-V-3.5 x 2) | Use: Digital I/O
SM-S7-1500BAuxiliary power: none | Use: Digital I/O, Analog I/O

Need a different model, or a part not listed here? Send us your parts list →
