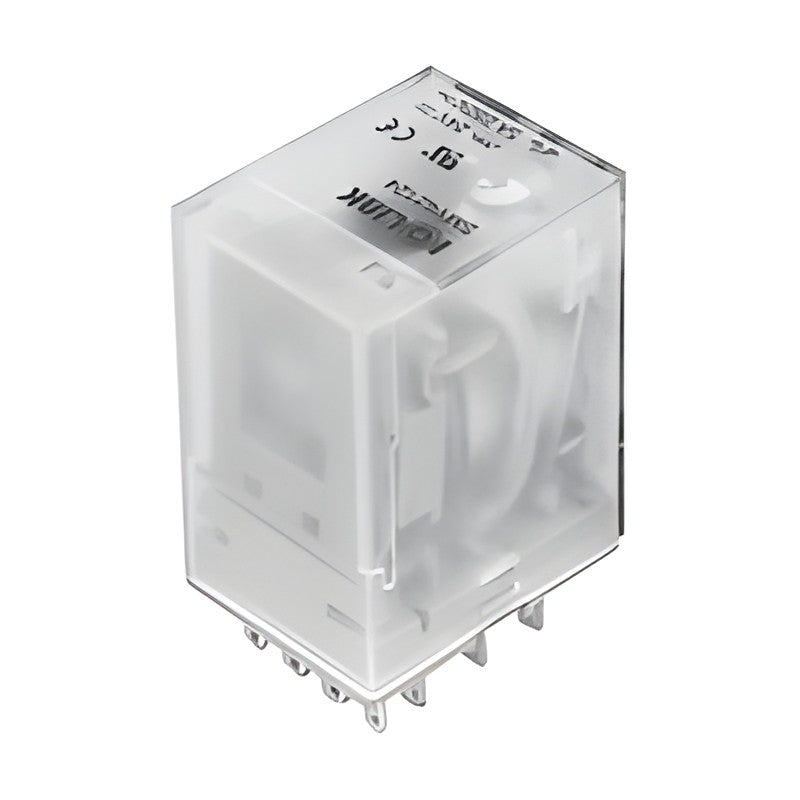

Samwon ACT SMY 4PDT MY-Type Relay with Operation Indicator, 5 A

Samwon ACT SMY 4PDT MY-Type Relay with Operation Indicator, 5 A

Plug-in MY-type general purpose relay with four changeover (4PDT) contacts rated 5 A, with coil LED and mechanical contact operation indicator.

Key features

  • General-purpose MY-type relay for sequence control and power switching. 4-pole contacts switch 5 A resistive loads
  • Coil LED and contact operation indicator show input voltage and contact status
  • High reliability with 2,000 V AC coil-contact dielectric strength
  • UL and CE approved

Specifications

Contact Resistance 50 mohm max.
Operate / Release Time 20 ms max.
Electrical Life 2 x 10^5 operations min. (1,800 operations/h)
Mechanical Life 1 x 10^7 operations min. (18,000 operations/h)
Insulation Resistance 500 Mohm min. (500 V DC)
Dielectric Strength 2,000 V AC 1 min (contact-coil), 1,000 V AC 1 min (between contacts)
Terminal Plug-in
Contact Material Ag alloy
Approvals UL, CE
Contact Form 4PDT
Rated Current 5 A (resistive), 4 A (inductive 250 V AC, p.f. 0.4), 1.8 A (inductive 24 V DC, L/R 7 ms)
Rated Load (Resistive) 5 A 250 V AC, 5 A 30 V DC
Samwon ACT SMY 4PDT MY-Type Relay with Operation Indicator, 5 A - reference 2
SMY42124 Coil Voltage: 24 V DC | Coil Current: 37.5 mA | Power: Approx. 0.9 W
SMY411Y0 Coil Voltage: 200/220 V AC | Coil Current: 6.8 mA (50 Hz) / 5.8 mA (60 Hz) | Power: Approx. 1.2 VA
SMY411X0 Coil Voltage: 100/110 V AC | Coil Current: 11.7 mA (50 Hz) / 10.0 mA (60 Hz) | Power: Approx. 1.2 VA
General Purpose RelaysSamwon ACT
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SMY 4PDT MY-Type Relay with Operation Indicator, 5 A

Brand Samwon ACT·General Purpose Relays

Available part numbers (3)

SMY42124, SMY411Y0, SMY411X0

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Samwon ACT SMY 4PDT MY-Type Relay with Operation Indicator, 5 A - reference 2
0 selected
RFQ List (0)
Product codeSpec
SMY42124Coil Voltage: 24 V DC | Coil Current: 37.5 mA | Power: Approx. 0.9 W
SMY411Y0Coil Voltage: 200/220 V AC | Coil Current: 6.8 mA (50 Hz) / 5.8 mA (60 Hz) | Power: Approx. 1.2 VA
SMY411X0Coil Voltage: 100/110 V AC | Coil Current: 11.7 mA (50 Hz) / 10.0 mA (60 Hz) | Power: Approx. 1.2 VA
