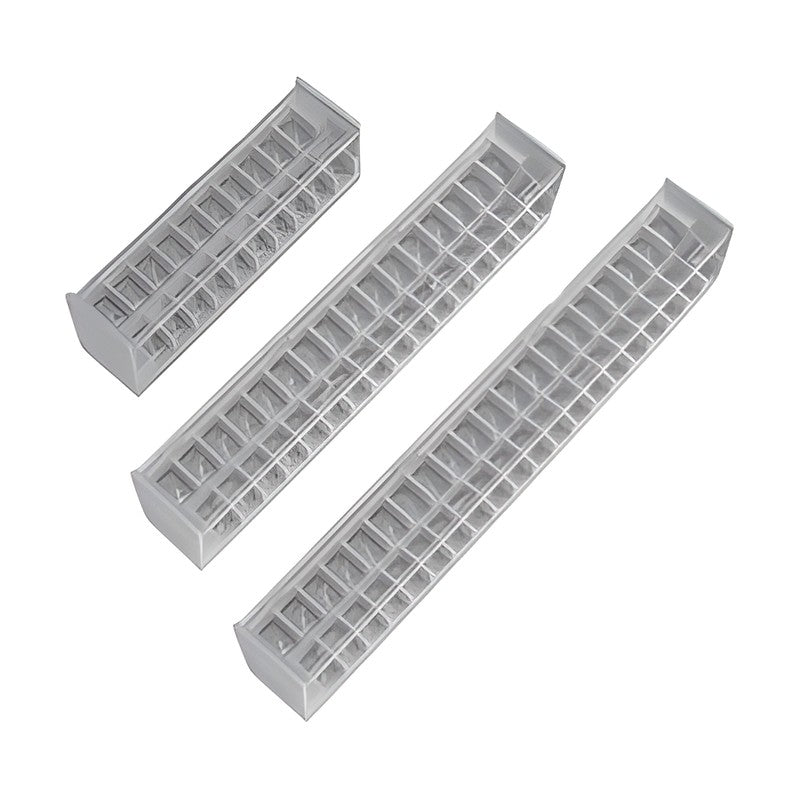

Samwon ACT ST-A Series 7.62mm Pitch 2-Tier PCB Terminal Blocks

Integrated 2-tier 7.62 mm pitch PCB terminal blocks in the common 20, 34 and 40 pole sizes.

Key features

Commonly used 20, 34 and 40 pole 2-tier PCB terminal blocks
Transparent PC window cover allows user marking inserts
Accepts both Y and O crimp terminals

Specifications

Rated Voltage	250 V
Rated Current	10 A
Withstand Voltage	2,000 V AC, 1 min
Insulation Resistance	100 MOhm min. (500 V DC)
Applicable Wire	AWG 22-16 (1.5 mm2 max.)
Terminal Bolt	M3 x 6L
Screw Torque	0.8 N.m (8 kgf.cm)
Pitch	7.62 mm
Material	Case: Noryl UL94-V0; Cover: Polycarbonate, transparent; Terminal bolt: Steel, nickel plated; Pin: Brass, tin plated

ST-20A-762		Poles: 20 \| Length A: 85.5 +/-0.5 mm
ST-34A-762		Poles: 34 \| Length A: 139.5 +/-0.5 mm
ST-40A-762		Poles: 40 \| Length A: 161.5 +/-0.5 mm
