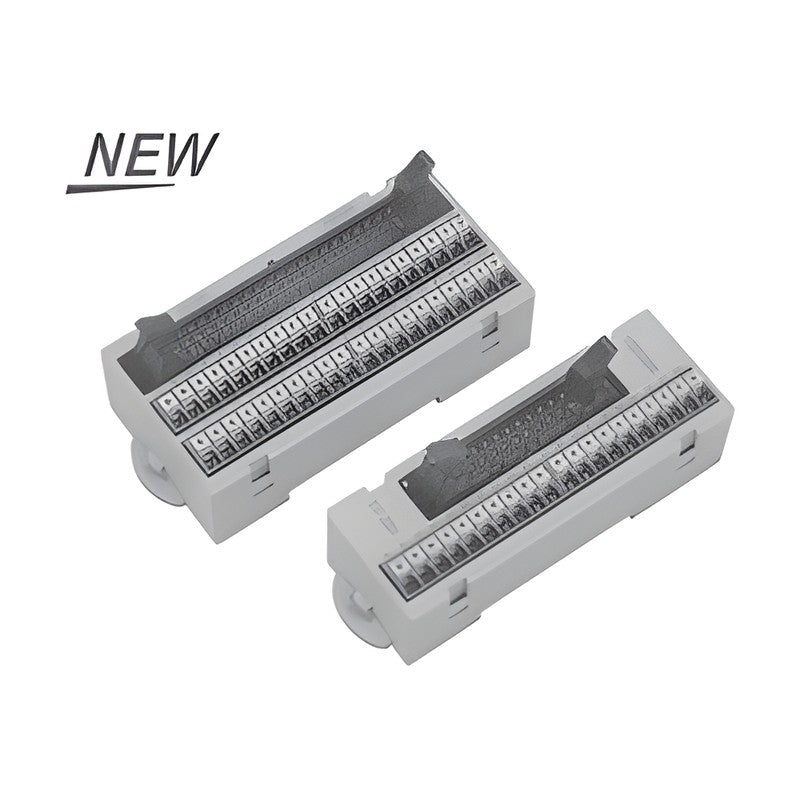

Samwon ACT SV Series Slim 3.5mm Pitch Push-In Interface Terminal Blocks

Samwon ACT SV Series Slim 3.5mm Pitch Push-In Interface Terminal Blocks

Slim vertical-mount 3.5 mm pitch push-in interface terminal blocks with MIL connectors for space-limited panels. 3.5 mm pitch vertical mounting saves panel space (SV-20H 27 mm vs SA-1H20S 57.4 mm, about 52% smaller).

Key features

  • SV-40H is 38 mm wide vs 107.5 mm for SA-1H40S (about 65% smaller)
  • Push-in pluggable terminals for reliable wiring under vibration
  • Flame-retardant Noryl material
  • Dedicated SV-40H cables: e.g
  • C40HF-xPBU-1

Specifications

Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire Solid AWG 22-16; Stranded AWG 28-20
Operating Temperature -10 to +50 C (no condensation)
Material Terminal block: LCP; Conductor: Cu alloy; Case: Modified PPO; PCB: Epoxy 1.6 t
Pitch 3.5 mm
Mounting DIN rail (channel)
Applicable Tool Flat screwdriver 2.6 x 0.35 mm
Rated Voltage 125 V
Rated Current 1 A
Certification CE
SV-20H Ports: 20 | Connector: MIL HIF3BA-20PA-2.54DSA or XG4A-2031 | Cable connector: HIF3BA-20D-2.54R or XG4M-2030 | Dimensions (W x D): 27.0 x 75.0 mm
SV-40H Ports: 40 | Connector: MIL HIF3BA-40PA-2.54DSA or XG4A-4031 | Cable connector: HIF3BA-40D-2.54R or XG4M-4030 | Dimensions (W x D): 38.0 x 75.0 mm
Interface Terminal BlocksSamwon ACT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SV Series Slim 3.5mm Pitch Push-In Interface Terminal Blocks

Brand Samwon ACT·Interface Terminal Blocks

Available part numbers (2)

SV-20H, SV-40H

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SV-20HPorts: 20 | Connector: MIL HIF3BA-20PA-2.54DSA or XG4A-2031 | Cable connector: HIF3BA-20D-2.54R or XG4M-2030 | Dimensions (W x D): 27.0 x 75.0 mm
SV-40HPorts: 40 | Connector: MIL HIF3BA-40PA-2.54DSA or XG4A-4031 | Cable connector: HIF3BA-40D-2.54R or XG4M-4030 | Dimensions (W x D): 38.0 x 75.0 mm
