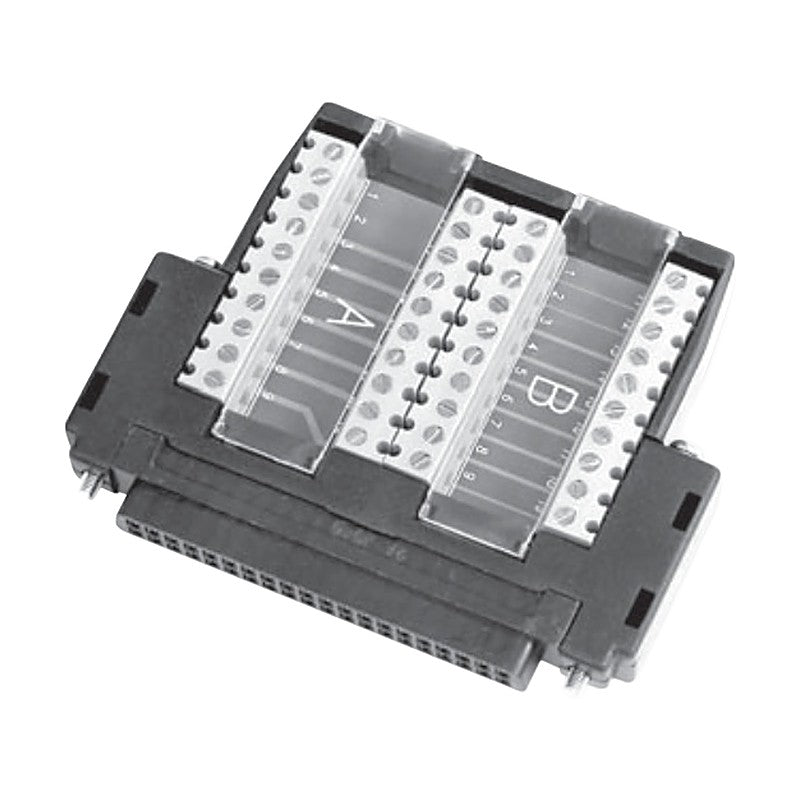

Samwon ACT TC-40F Fujitsu FCN 40P Connector with Screw Terminal Blocks

General-purpose 40-pin Fujitsu FCN connector with built-in screw terminal blocks for direct wiring of PLC I/O cards with FCN connectors.

Key features

Screw terminal blocks inside an FCN connector body
No dedicated tools or soldering needed (no crimping, pressing or soldering)
Distributed I/O wiring allows compact panel design for semiconductor, PDP, LCD and DCS equipment
Terminal-block wiring on site without pre-assembly; easy rework

Specifications

Rated Voltage	5-24 V DC
Rated Current	1 A
Insulation Resistance	100 MOhm min. (500 V DC)
Withstand Voltage	500 V AC, 1 min
Applicable Wire	26-20 AWG
Strip Length	5 mm
Screw Torque	0.2 N.m (2 kgf.cm)
Operating Temperature	-10 to +50 C (no condensation)
Material	Terminal block: PA66; Screw: M2 steel, Zn plated; Pin header: Phosphor bronze, tin plated; PCB: Epoxy 1.6 t
Mating Connector	Equivalent to FCN-365J040-AU

TC-40F

Pins: 40 | Dimensions: 75.3 x 66.3 mm
