Samwon ACT TG Series 7.62mm Pitch Slim 40mm Interface Terminal Blocks

Samwon ACT TG Series 7.62mm Pitch Slim 40mm Interface Terminal Blocks

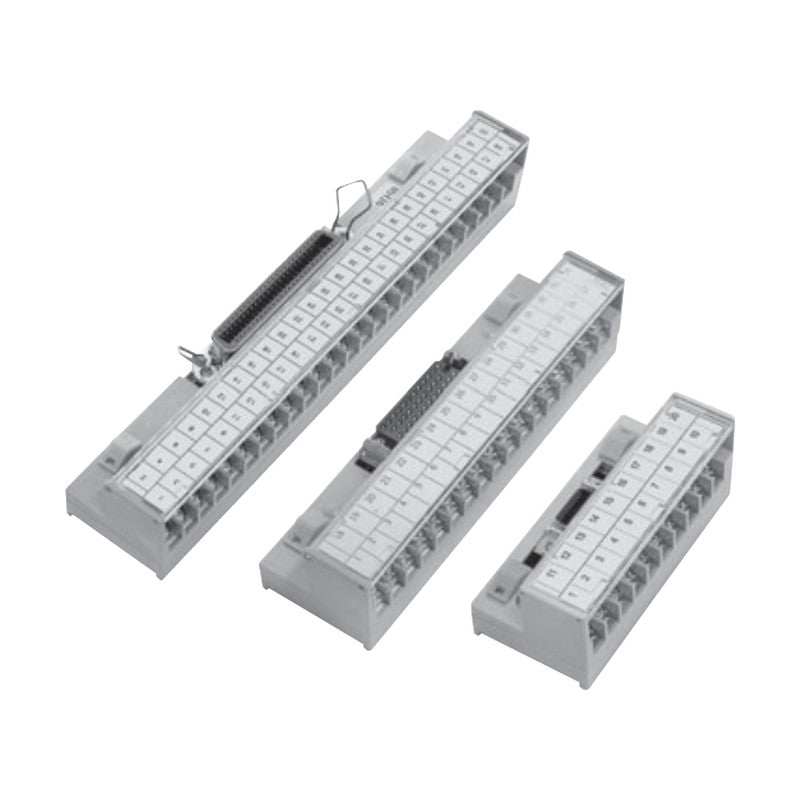

Slim 40 mm wide, 7.62 mm pitch interface terminal blocks with MDR, MR or 57-series connectors for controller input/output wiring.

Key features

  • Optimized for connector-type controller I/O. 40 mm slim body reduces mounting area by about 60% versus modular terminal blocks
  • Transparent hinged terminal cover; captive terminal bolts
  • Available for Y (fork) or O (ring) crimp terminals
  • Enclosed PCB construction resistant to dust and moisture

Specifications

Rated Voltage 125 V AC / 24 V DC
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Operating Temperature -10 to +50 C (no condensation)
Material Terminal block: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t
Rated Current 1 A
Pitch 7.62 mm
Terminal Screw M3 x 10L
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Mounting Screw / DIN rail (channel)
TG-3M20S Poles: 20 | Connector: MDR socket 10220-6202JL | Cable connector: 10120-3000PE (VE) | Dimensions (W x D): 85.0 x 40.0 mm | Crimp terminal: Y and O
TG-2M34B Poles: 34 | Connector: MR socket MR-34RFD2 | Cable connector: MR-34M | Dimensions (W x D): 140.0 x 40.0 mm | Crimp terminal: Y (fork)
TG-2M34B-O Poles: 34 | Connector: MR socket MR-34RFD2 | Cable connector: MR-34M | Dimensions (W x D): 140.0 x 40.0 mm | Crimp terminal: O (ring)
TG-2M50A Poles: 50 | Connector: MR plug MR-50RMD2 | Cable connector: MR-50F | Dimensions (W x D): 200.0 x 40.0 mm | Crimp terminal: Y (fork)
TG-2M50A-O Poles: 50 | Connector: MR plug MR-50RMD2 | Cable connector: MR-50F | Dimensions (W x D): 200.0 x 40.0 mm | Crimp terminal: O (ring)
TG-9D50 Poles: 50 | Connector: 57GE-40500-751 | Cable connector: 57E-30500 | Dimensions (W x D): 200.0 x 40.0 mm | Crimp terminal: Y (fork)
TG-9D50-O Poles: 50 | Connector: 57GE-40500-751 | Cable connector: 57E-30500 | Dimensions (W x D): 200.0 x 40.0 mm | Crimp terminal: O (ring)
