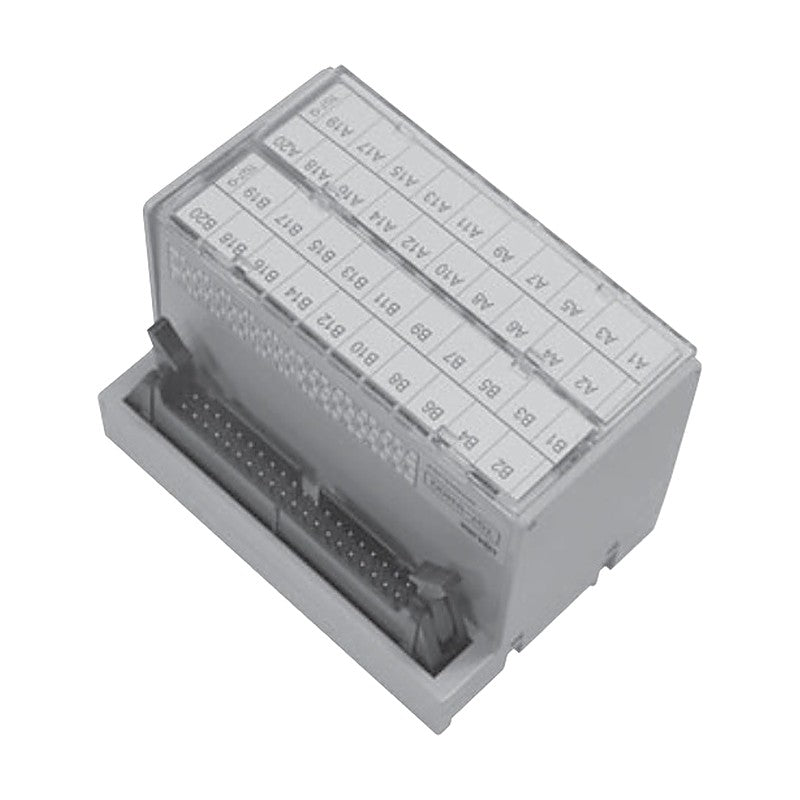

Samwon ACT TG7-1H40Q 40-Pin 4-Tier Screw Type Interface Terminal Blocks

Samwon ACT TG7-1H40Q 40-Pin 4-Tier Screw Type Interface Terminal Blocks

Ultra-compact 4-tier 7.0 mm pitch screw-type 40-pin interface terminal blocks for 32-point PLC I/O.

Key features

  • Ultra-compact 80.0 (W) x 55.0 (H) mm screw-type 40P terminal block
  • Same use and function as the 2-tier XTB-40H with the same PLC cables
  • Suited to semiconductor and LCD/PDP equipment and space-limited panels
  • Transparent hinged cover; captive terminal bolts
  • Enclosed PCB construction resistant to dust and moisture

Specifications

Rated Voltage 125 V AC / 24 V DC
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Operating Temperature -10 to +50 C (no condensation)
Material Terminal block: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t
Rated Current 1 A
Poles 40
Pitch 7.0 mm
Terminal Screw M3 x 10L
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Connector HIF3BA-40PA-2.54DSA or XG4A-4031
Samwon ACT TG7-1H40Q 40-Pin 4-Tier Screw Type Interface Terminal Blocks - reference 2
TG7-1H40Q Application: Q, XGT PLC (A/B row wiring) | Crimp terminal: Y (fork)
TG7-1H40Q-O Application: Q, XGT PLC (A/B row wiring) | Crimp terminal: O (ring)
TG7-1H40QB Application: MASTER-K (sequential wiring) | Crimp terminal: Y (fork)
TG7-1H40QB-O Application: MASTER-K (sequential wiring) | Crimp terminal: O (ring)
Interface Terminal BlocksSamwon ACT
4 product codes available in this family
