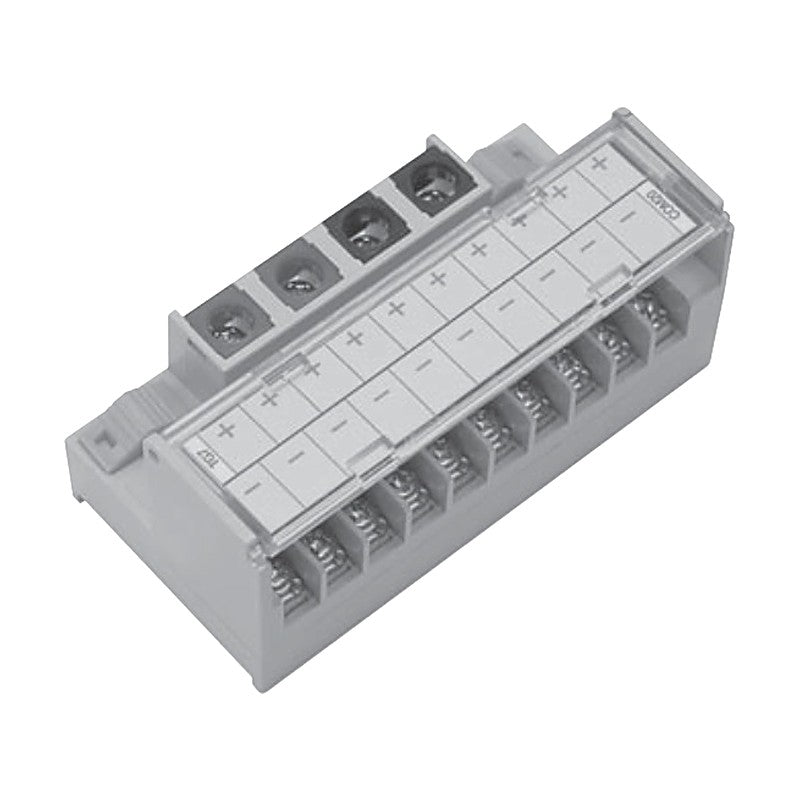

Samwon ACT TG7-COM20P 7.0mm Pitch Common Terminal Blocks with Separate Power Input

Samwon ACT TG7-COM20P 7.0mm Pitch Common Terminal Blocks with Separate Power Input

Compact 7.0 mm pitch common terminal blocks with separate input power terminals and 20 output common poles.

Key features

  • Separate input power terminals make input and output easy to identify
  • Input power wiring isolated for safe use with O-type terminals
  • Ultra-compact 80.0 (W) x 40.0 (D) mm
  • Transparent hinged terminal cover
  • Enclosed PCB construction with flame-retardant case

Specifications

Rated Voltage 125 V max.
Rated Current 10 A
Poles Input 4, Output 20
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Terminal Screw Input M3.5 x 10L (4 poles); Output M3 x 6L (20 poles)
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature -10 to +50 C (no condensation)
Dimensions 80.0 x 40.0 mm (W x D)
Mounting Screw / DIN rail (channel)
Crimp Terminal Y and O type
TG7-COM20P Common: input 2P (+), 2P (-); output upper row 10P (+), lower row 10P (-)
TG7-COM20PB Common: input 2P (+), 2P (-); output left 10P (+), right 10P (-)
Interface Terminal BlocksSamwon ACT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT TG7-COM20P 7.0mm Pitch Common Terminal Blocks with Separate Power Input

Brand Samwon ACT·Interface Terminal Blocks

Available part numbers (2)

TG7-COM20P, TG7-COM20PB

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TG7-COM20PCommon: input 2P (+), 2P (-); output upper row 10P (+), lower row 10P (-)
TG7-COM20PBCommon: input 2P (+), 2P (-); output left 10P (+), right 10P (-)
