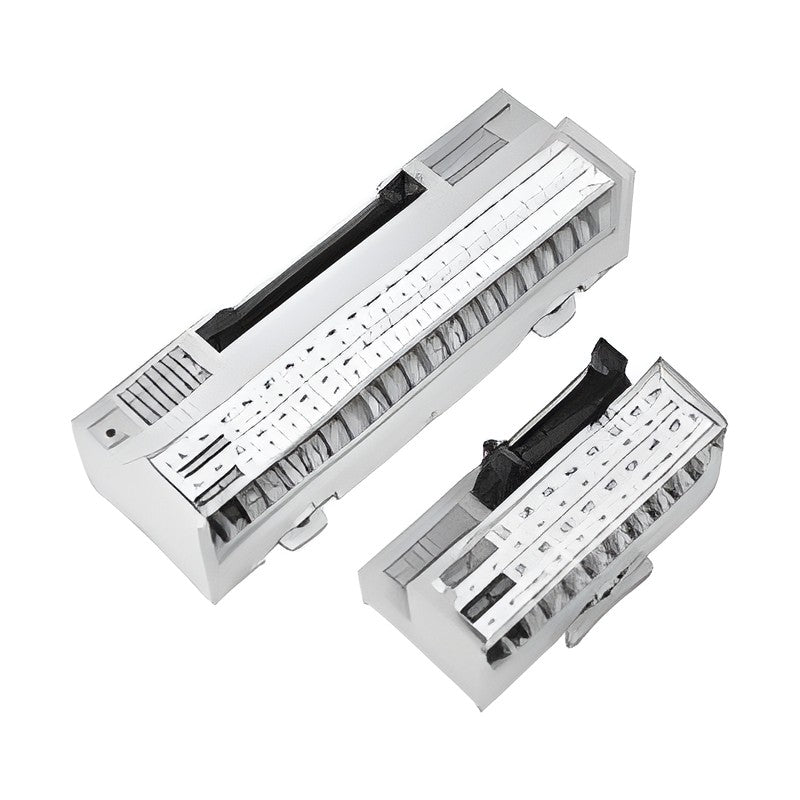

Samwon ACT TG7-L Series LED Indicator Interface Terminal Blocks

Samwon ACT TG7-L Series LED Indicator Interface Terminal Blocks

7.0 mm pitch input/output interface terminal blocks with per-point LED indicators for checking I/O operation.

Key features

  • Per-point LEDs show I/O signal status at the terminal block
  • Simplifies I/O checks when controller and I/O are far apart
  • Transparent hinged cover; captive terminal bolts
  • Enclosed PCB construction resistant to dust and moisture
  • Suited to systems and remote I/O needing frequent I/O checks

Specifications

Rated Voltage 12-24 V DC
Rated Current 1 A
Indicator I/O: LED (red); Power: LED (green)
LED Rating 24 V DC: 100 mA max. per point
Withstand Voltage 500 V AC, 1 min
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Operating Temperature -10 to +50 C (no condensation)
Material Terminal block: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Insulation Resistance 500 MOhm min. (500 V DC)
Terminal Screw M3 x 10L
Mounting DIN rail (channel)
TG7-1H20L-N Points: 16 | Common: NPN (+COM) | Connector: HIF3BA-20PA-2.54DSA1 or XG4A-2031 | Crimp terminal: Y (fork) | Dimensions (W x D): 80.0 x 40.0 mm
TG7-1H20L-N-O Points: 16 | Common: NPN (+COM) | Connector: HIF3BA-20PA-2.54DSA1 or XG4A-2031 | Crimp terminal: O (ring) | Dimensions (W x D): 80.0 x 40.0 mm
TG7-1H20L-P Points: 16 | Common: PNP (-COM) | Connector: HIF3BA-20PA-2.54DSA or XG4A-2031 | Crimp terminal: Y (fork) | Dimensions (W x D): 80.0 x 40.0 mm
TG7-1H20L-P-O Points: 16 | Common: PNP (-COM) | Connector: HIF3BA-20PA-2.54DSA or XG4A-2031 | Crimp terminal: O (ring) | Dimensions (W x D): 80.0 x 40.0 mm
TG7-1H40L-N Points: 32 | Common: NPN (+COM) | Connector: HIF3BA-40PA-2.54DSA or XG4A-4031 | Crimp terminal: Y (fork) | Dimensions (W x D): 152.3 x 49.5 mm
TG7-1H40L-N-O Points: 32 | Common: NPN (+COM) | Connector: HIF3BA-40PA-2.54DSA or XG4A-4031 | Crimp terminal: O (ring) | Dimensions (W x D): 152.3 x 49.5 mm
TG7-1H40L-P Points: 32 | Common: PNP (-COM) | Connector: HIF3BA-40PA-2.54DSA or XG4A-4031 | Crimp terminal: Y (fork) | Dimensions (W x D): 152.3 x 49.5 mm
TG7-1H40L-P-O Points: 32 | Common: PNP (-COM) | Connector: HIF3BA-40PA-2.54DSA or XG4A-4031 | Crimp terminal: O (ring) | Dimensions (W x D): 152.3 x 49.5 mm
