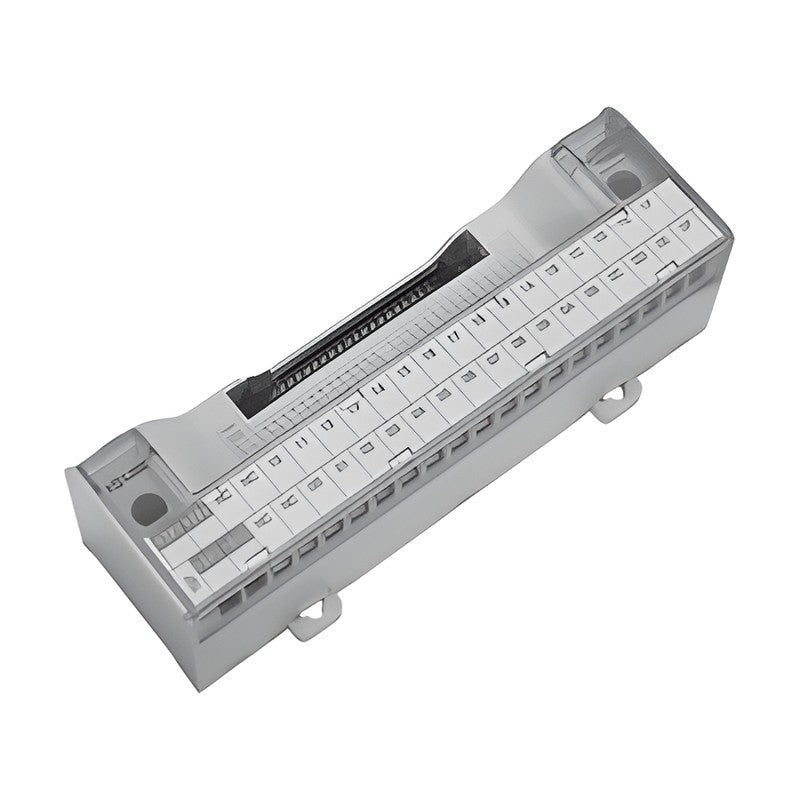

Samwon ACT TGF Series Detachable LED Indicator Interface Terminal Blocks

32-point input/output interface terminal blocks with LED indicators and a detachable terminal section that can be replaced without rewiring.

Key features

Detachable terminal section can be replaced without removing field wiring
Per-point LEDs show I/O signal status
Enclosed PCB construction with flame-retardant case
Suited to systems and remote I/O needing frequent I/O checks

Specifications

Rated Voltage	12-24 V DC
Rated Current	1 A
Indicator	I/O: LED (red); Power: LED (green)
LED Rating	24 V DC: 100 mA max. per point
Withstand Voltage	500 V AC, 1 min
Applicable Wire	AWG 22-16 (1.5 mm2 max.)
Operating Temperature	-10 to +50 C (no condensation)
Material	Terminal block: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t
Screw Torque	7-8 kgf.cm (0.68-0.78 N.m)
Insulation Resistance	100 MOhm min. (500 V DC)
Terminal Screw	M3 x 6L
Points	32

TGF-1H40L-N		Common: NPN (+COM)
TGF-1H40L-P		Common: PNP (-COM)

Interface Terminal BlocksSamwon ACT

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT TGF Series Detachable LED Indicator Interface Terminal Blocks

Brand Samwon ACT·Interface Terminal Blocks

Available part numbers (2)

TGF-1H40L-N, TGF-1H40L-P
