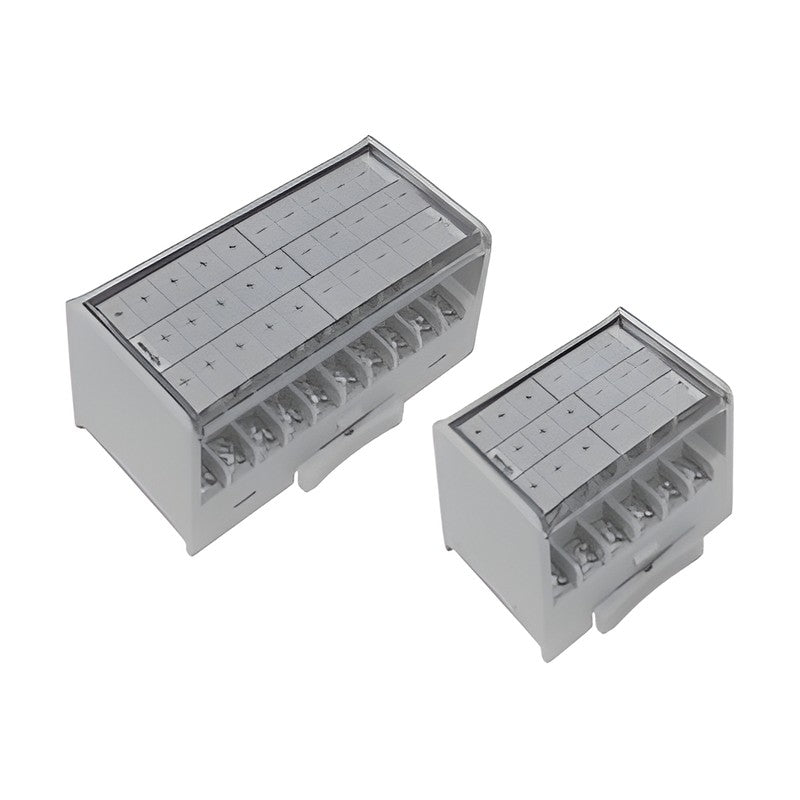

Samwon ACT XTB-COM18T / XTB-COM30T High-Current 3-Tier Common Terminal Blocks

Samwon ACT XTB-COM18T / XTB-COM30T High-Current 3-Tier Common Terminal Blocks

High-current 3-tier busbar common terminal blocks rated up to 30 A total without a PCB. 3-tier layout minimizes mounting size versus 2-tier blocks (XTB-COM18T 51 mm vs XTB-COM20 80 mm).

Key features

  • PCB-free busbar construction carries up to 30 A
  • Hinged sliding window cover does not need to be removed for wiring
  • Case-integrated structure reduces short-circuit and shock risk
  • Stepped terminal structure allows double wiring per terminal

Specifications

Rated Voltage 150 V AC/DC
Rated Current 30 A (total)
Applicable Wire AWG 22-14
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Terminal Screw M3 x 7L
Screw Torque 7-8 kgf.cm (0.68-0.78 N.m)
Operating Temperature -10 to +50 C (no condensation)
Material Terminal block: Modified PPO; Cover: Polycarbonate; Conductor: Brass / tin plated
Mounting DIN rail (channel)
Samwon ACT XTB-COM18T / XTB-COM30T High-Current 3-Tier Common Terminal Blocks - reference 2
XTB-COM18T Poles: 18 | Common: left 9P (+) / right 9P (-) | Dimensions (W x D): 51.0 x 40.0 mm
XTB-COM30T Poles: 30 | Common: left 15P (+) / right 15P (-) | Dimensions (W x D): 80.0 x 40.0 mm
Terminal BlocksSamwon ACT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT XTB-COM18T / XTB-COM30T High-Current 3-Tier Common Terminal Blocks

Brand Samwon ACT·Terminal Blocks

Available part numbers (2)

XTB-COM18T, XTB-COM30T

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Samwon ACT XTB-COM18T / XTB-COM30T High-Current 3-Tier Common Terminal Blocks - reference 2
0 selected
RFQ List (0)
Product codeSpec
XTB-COM18TPoles: 18 | Common: left 9P (+) / right 9P (-) | Dimensions (W x D): 51.0 x 40.0 mm
XTB-COM30TPoles: 30 | Common: left 15P (+) / right 15P (-) | Dimensions (W x D): 80.0 x 40.0 mm
