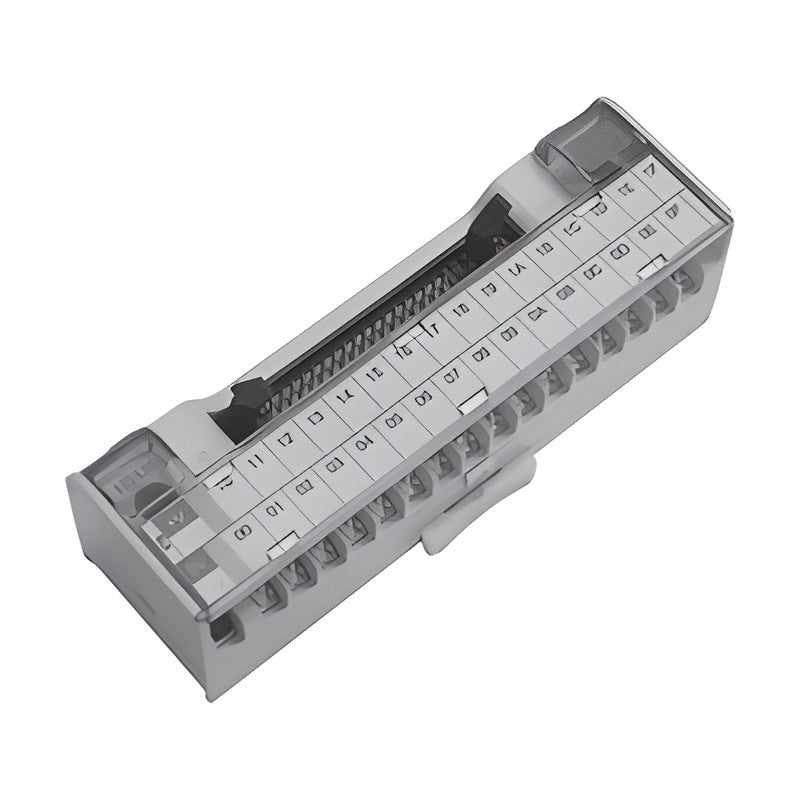

Samwon ACT XTB-ME/LS/LB/SM 32-Point PLC-Dedicated I/O Interface Terminal Blocks

Compact 32-point fixed-I/O interface terminal blocks dedicated to specific Mitsubishi, LS Electric and Siemens PLC I/O cards.

Key features

Minimum size 131.0 x 40.5 mm with unused terminals removed. 32 I/O points plus 2 power points; signal wiring starts from the left side
Channel locking clip allows sliding on 34.5-35 mm DIN rail without stoppers
Enclosed PCB construction resistant to dust and moisture
Flame-retardant outer case

Specifications

Rated Voltage	125 V AC / 24 V DC
Insulation Resistance	100 MOhm min. (500 V DC)
Withstand Voltage	500 V AC, 1 min
Applicable Wire	AWG 22-16 (1.5 mm2 max.)
Operating Temperature	-10 to +50 C (no condensation)
Material	Terminal block: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t
Rated Current	Power 2 A, I/O 0.5 A
Poles	Power 2P, I/O 32P
Terminal Screw	M3 x 6L
Screw Torque	7-8 kgf.cm (0.68-0.78 N.m)
Cable Side Connector	HIF3BA-40D-2.54R
Dimensions	131.0 x 40.5 mm (W x D)

XTB-ME1		PLC: Mitsubishi iQ-R/Q/A1S \| Cards: QX41/QX42/QH42P/QY41P/QY42P/QY82P, A1SX41/A1SX42/A1SY41/A1SY42/A1SY82/A1SH42, QX82 \| Cable: C40HF-xPX-1 (QX82: C40HF-xPX-1P)
XTB-ME2		PLC: Mitsubishi Q/A1S \| Cards: QX81, A1SX81 \| Cable: C37HD-xPX-MI1 / C37HD-xPX-MI3
XTB-ME3		PLC: Mitsubishi Q/A1S \| Cards: QY81P, A1SY81P \| Cable: C37HD-xPX-MI1 / C37HD-xPX-MI3
XTB-LS1		PLC: LS Electric XGT \| Cards: XGI-D24A/XGI-D24B/XGI-D28A/XGI-D28B \| Cable: C40HF-xPX-1
XTB-LS2		PLC: LS Electric XGT \| Cards: XGQ-TR4A/XGQ-TR4B/XGQ-TR8A/XGQ-TR8B \| Cable: C40HF-xPX-1
XTB-LS3		PLC: LS Electric MASTER-K \| Cards: G4I-D24A/C, G4I-D24B, G6I-D24A, G4I-D28A, G3I-D28A \| Cable: C37HD-xPX / C40HF-xPX-3, 1A
XTB-LS4		PLC: LS Electric MASTER-K \| Cards: G4Q-TR4A/G4Q-TR4B, G6Q-TR4A/G6Q-TR4B \| Cable: C37HD-xPX
XTB-LS5		PLC: LS Electric MASTER-K \| Cards: G3Q-TR8A, G4Q-TR8A \| Cable: C40HF-xPX-3 / C40HF-xPX-1A, 3
XTB-LB1		PLC: LS Electric XGB \| Cards: XBE-DC32A \| Cable: C40HH-xPU-XBI
XTB-LB2		PLC: LS Electric XGB \| Cards: XBE-TN32A, XBE-TP32A \| Cable: C40HH-xPU-XBI
XTB-SM1		PLC: Siemens S7-300 \| Cards: 6ES7 321-1BL00-0AA0, 6ES7 322-1BL00-0AA0, 6ES7 323-1BL00-0AA0 \| Cable: R40HH-xSM
