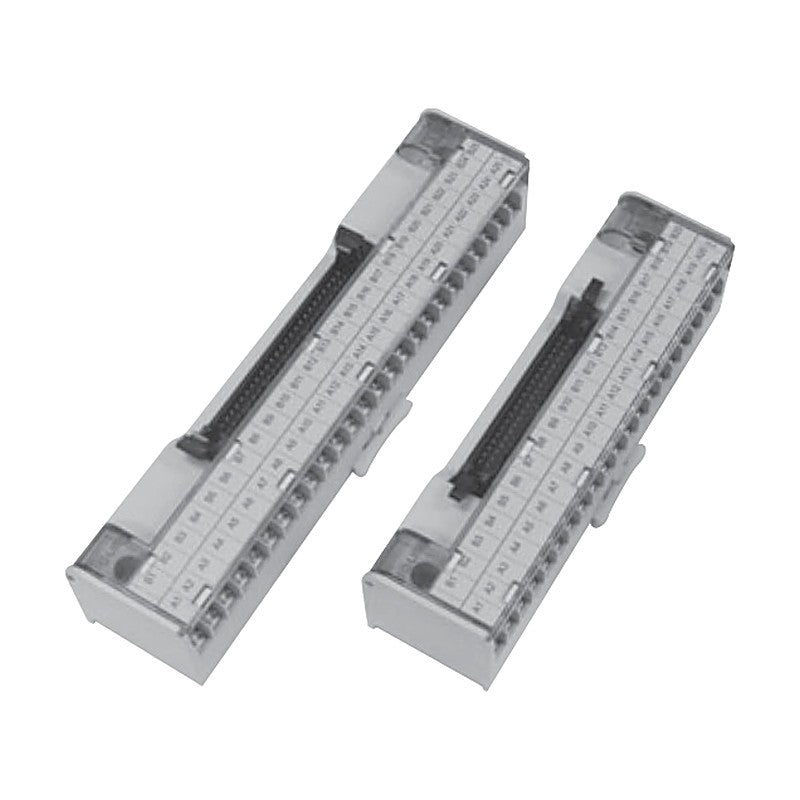

Samwon ACT XTB Series 7.0mm Pitch MIL Connector Interface Terminal Blocks

Samwon ACT XTB Series 7.0mm Pitch MIL Connector Interface Terminal Blocks

Standard 7.0 mm pitch screw-type interface terminal blocks with a MIL-C-83503 connector for connecting PLC and controller I/O cables.

Key features

  • Single-tier 7.0 mm pitch interface terminal block
  • Transparent hinged terminal cover for easy work and maintenance
  • Mounts on DIN rail (channel) or by screw holes
  • Enclosed PCB construction resistant to dust and moisture
  • Flame-retardant outer case

Specifications

Rated Voltage 125 V AC / 24 V DC
Insulation Resistance 100 MOhm min. (500 V DC)
Withstand Voltage 500 V AC, 1 min
Applicable Wire AWG 22-16 (1.5 mm2 max.)
Operating Temperature -10 to +50 C (no condensation)
Material Terminal block: Modified PPO; Cover: Polycarbonate; PCB: Epoxy 1.6 t
Rated Current 1 A
UL Rating 125 V AC / DC, 1 A
Terminal Screw M3 x 7L
Screw Torque 1.2 N.m (12 kgf.cm)
Connector MIL standard (IL-C-83503)
Mounting Screw / DIN rail (channel)
XTB-20H Poles: 20 | Connector: HIF3BA-20PA-2.54DSA or XG4A-2031 | Dimensions (W x D): 80.0 x 40.5 mm
XTB-26H Poles: 26 | Connector: HIF3BA-26PA-2.54DSA or XG4A-2631 | Dimensions (W x D): 101.0 x 40.5 mm
XTB-34H Poles: 34 | Connector: HIF3BA-34PA-2.54DSA or XG4A-3431 | Dimensions (W x D): 129.0 x 40.5 mm
XTB-40H Poles: 40 | Connector: HIF3BA-40PA-2.54DSA or XG4A-4031 | Dimensions (W x D): 149.0 x 40.5 mm
XTB-50H Poles: 50 | Connector: HIF3BA-50PA-2.54DSA or XG4A-5071 | Dimensions (W x D): 184.0 x 40.5 mm
XTB-50B Poles: 50 | Connector: HIF3BB-50PA-2.54DSA or XG4A-5031 | Dimensions (W x D): 184.0 x 40.5 mm
Interface Terminal BlocksSamwon ACT
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT XTB Series 7.0mm Pitch MIL Connector Interface Terminal Blocks

Brand Samwon ACT·Interface Terminal Blocks

Available part numbers (6)

XTB-20H, XTB-26H, XTB-34H, XTB-40H, XTB-50H, XTB-50B

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XTB-20HPoles: 20 | Connector: HIF3BA-20PA-2.54DSA or XG4A-2031 | Dimensions (W x D): 80.0 x 40.5 mm
XTB-26HPoles: 26 | Connector: HIF3BA-26PA-2.54DSA or XG4A-2631 | Dimensions (W x D): 101.0 x 40.5 mm
XTB-34HPoles: 34 | Connector: HIF3BA-34PA-2.54DSA or XG4A-3431 | Dimensions (W x D): 129.0 x 40.5 mm
XTB-40HPoles: 40 | Connector: HIF3BA-40PA-2.54DSA or XG4A-4031 | Dimensions (W x D): 149.0 x 40.5 mm
XTB-50HPoles: 50 | Connector: HIF3BA-50PA-2.54DSA or XG4A-5071 | Dimensions (W x D): 184.0 x 40.5 mm
XTB-50BPoles: 50 | Connector: HIF3BB-50PA-2.54DSA or XG4A-5031 | Dimensions (W x D): 184.0 x 40.5 mm
