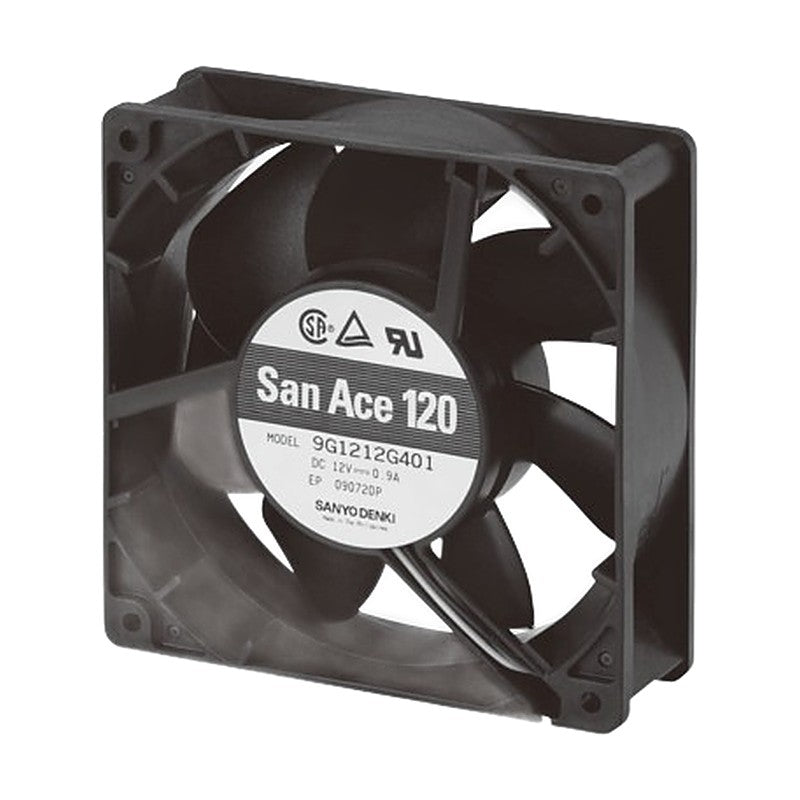

Sanyo Denki San Ace 120 DC Axial Fan 120x120x25 mm (G Type)

Sanyo Denki San Ace 120 DC Axial Fan 120x120x25 mm (G Type)

The San Ace 120 G Type is a DC axial cooling fan in a 120x120x25 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 1,950 to 4,100 min-1 with maximum air flow up to 3.68 m3/min and maximum static pressure up to 120 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 120x120x25 mm
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 240 g
9G1212G401 Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.90 A | Rated input: 10.8 W | Speed: 4,100 min-1 | Max air flow: 3.68 m3/min (130 CFM) | Max static pressure: 120 Pa (0.482 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1212E401 Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.58 A | Rated input: 6.96 W | Speed: 3,650 min-1 | Max air flow: 3.25 m3/min (115 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 48 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1212A401 Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.40 A | Rated input: 4.80 W | Speed: 3,150 min-1 | Max air flow: 2.83 m3/min (100 CFM) | Max static pressure: 77 Pa (0.309 inchH2O) | Noise: 44 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1212H401 Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.31 A | Rated input: 3.72 W | Speed: 2,850 min-1 | Max air flow: 2.50 m3/min (88 CFM) | Max static pressure: 64 Pa (0.257 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1212F401 Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.19 A | Rated input: 2.28 W | Speed: 2,250 min-1 | Max air flow: 1.98 m3/min (70 CFM) | Max static pressure: 42 Pa (0.169 inchH2O) | Noise: 35 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1212M401 Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.14 A | Rated input: 1.68 W | Speed: 1,950 min-1 | Max air flow: 1.66 m3/min (58 CFM) | Max static pressure: 31 Pa (0.124 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224G401 Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.47 A | Rated input: 11.28 W | Speed: 4,100 min-1 | Max air flow: 3.68 m3/min (130 CFM) | Max static pressure: 120 Pa (0.482 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224E401 Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.37 A | Rated input: 8.88 W | Speed: 3,650 min-1 | Max air flow: 3.25 m3/min (115 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 48 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224A401 Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.21 A | Rated input: 5.04 W | Speed: 3,150 min-1 | Max air flow: 2.83 m3/min (100 CFM) | Max static pressure: 77 Pa (0.309 inchH2O) | Noise: 44 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224H401 Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.17 A | Rated input: 4.08 W | Speed: 2,850 min-1 | Max air flow: 2.50 m3/min (88 CFM) | Max static pressure: 64 Pa (0.257 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224F401 Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.10 A | Rated input: 2.40 W | Speed: 2,250 min-1 | Max air flow: 1.98 m3/min (70 CFM) | Max static pressure: 42 Pa (0.169 inchH2O) | Noise: 35 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224M401 Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 1,950 min-1 | Max air flow: 1.66 m3/min (58 CFM) | Max static pressure: 31 Pa (0.124 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248G401 Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.23 A | Rated input: 11.04 W | Speed: 4,100 min-1 | Max air flow: 3.68 m3/min (130 CFM) | Max static pressure: 120 Pa (0.482 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248E401 Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.16 A | Rated input: 7.68 W | Speed: 3,650 min-1 | Max air flow: 3.25 m3/min (115 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 48 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248A401 Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.13 A | Rated input: 6.24 W | Speed: 3,150 min-1 | Max air flow: 2.83 m3/min (100 CFM) | Max static pressure: 77 Pa (0.309 inchH2O) | Noise: 44 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248H401 Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.10 A | Rated input: 4.80 W | Speed: 2,850 min-1 | Max air flow: 2.50 m3/min (88 CFM) | Max static pressure: 64 Pa (0.257 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248F401 Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 2,250 min-1 | Max air flow: 1.98 m3/min (70 CFM) | Max static pressure: 42 Pa (0.169 inchH2O) | Noise: 35 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248M401 Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.05 A | Rated input: 2.40 W | Speed: 1,950 min-1 | Max air flow: 1.66 m3/min (58 CFM) | Max static pressure: 31 Pa (0.124 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
DC Axial FansSanyo Denki
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120 DC Axial Fan 120x120x25 mm (G Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (18)

9G1212G401, 9G1212E401, 9G1212A401, 9G1212H401, 9G1212F401, 9G1212M401, 9G1224G401, 9G1224E401, 9G1224A401, 9G1224H401 + 8 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9G1212G401Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.90 A | Rated input: 10.8 W | Speed: 4,100 min-1 | Max air flow: 3.68 m3/min (130 CFM) | Max static pressure: 120 Pa (0.482 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1212E401Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.58 A | Rated input: 6.96 W | Speed: 3,650 min-1 | Max air flow: 3.25 m3/min (115 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 48 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1212A401Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.40 A | Rated input: 4.80 W | Speed: 3,150 min-1 | Max air flow: 2.83 m3/min (100 CFM) | Max static pressure: 77 Pa (0.309 inchH2O) | Noise: 44 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1212H401Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.31 A | Rated input: 3.72 W | Speed: 2,850 min-1 | Max air flow: 2.50 m3/min (88 CFM) | Max static pressure: 64 Pa (0.257 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1212F401Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.19 A | Rated input: 2.28 W | Speed: 2,250 min-1 | Max air flow: 1.98 m3/min (70 CFM) | Max static pressure: 42 Pa (0.169 inchH2O) | Noise: 35 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1212M401Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.14 A | Rated input: 1.68 W | Speed: 1,950 min-1 | Max air flow: 1.66 m3/min (58 CFM) | Max static pressure: 31 Pa (0.124 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224G401Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.47 A | Rated input: 11.28 W | Speed: 4,100 min-1 | Max air flow: 3.68 m3/min (130 CFM) | Max static pressure: 120 Pa (0.482 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224E401Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.37 A | Rated input: 8.88 W | Speed: 3,650 min-1 | Max air flow: 3.25 m3/min (115 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 48 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224A401Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.21 A | Rated input: 5.04 W | Speed: 3,150 min-1 | Max air flow: 2.83 m3/min (100 CFM) | Max static pressure: 77 Pa (0.309 inchH2O) | Noise: 44 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224H401Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.17 A | Rated input: 4.08 W | Speed: 2,850 min-1 | Max air flow: 2.50 m3/min (88 CFM) | Max static pressure: 64 Pa (0.257 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224F401Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.10 A | Rated input: 2.40 W | Speed: 2,250 min-1 | Max air flow: 1.98 m3/min (70 CFM) | Max static pressure: 42 Pa (0.169 inchH2O) | Noise: 35 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1224M401Size: 120x120x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 1,950 min-1 | Max air flow: 1.66 m3/min (58 CFM) | Max static pressure: 31 Pa (0.124 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248G401Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.23 A | Rated input: 11.04 W | Speed: 4,100 min-1 | Max air flow: 3.68 m3/min (130 CFM) | Max static pressure: 120 Pa (0.482 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248E401Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.16 A | Rated input: 7.68 W | Speed: 3,650 min-1 | Max air flow: 3.25 m3/min (115 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 48 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248A401Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.13 A | Rated input: 6.24 W | Speed: 3,150 min-1 | Max air flow: 2.83 m3/min (100 CFM) | Max static pressure: 77 Pa (0.309 inchH2O) | Noise: 44 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248H401Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.10 A | Rated input: 4.80 W | Speed: 2,850 min-1 | Max air flow: 2.50 m3/min (88 CFM) | Max static pressure: 64 Pa (0.257 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248F401Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 2,250 min-1 | Max air flow: 1.98 m3/min (70 CFM) | Max static pressure: 42 Pa (0.169 inchH2O) | Noise: 35 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
9G1248M401Size: 120x120x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.05 A | Rated input: 2.40 W | Speed: 1,950 min-1 | Max air flow: 1.66 m3/min (58 CFM) | Max static pressure: 31 Pa (0.124 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 240 g
