• Woonyoung A15C55T Series AC Cooling Fan, 150 x 172 x 55 mm
1 1

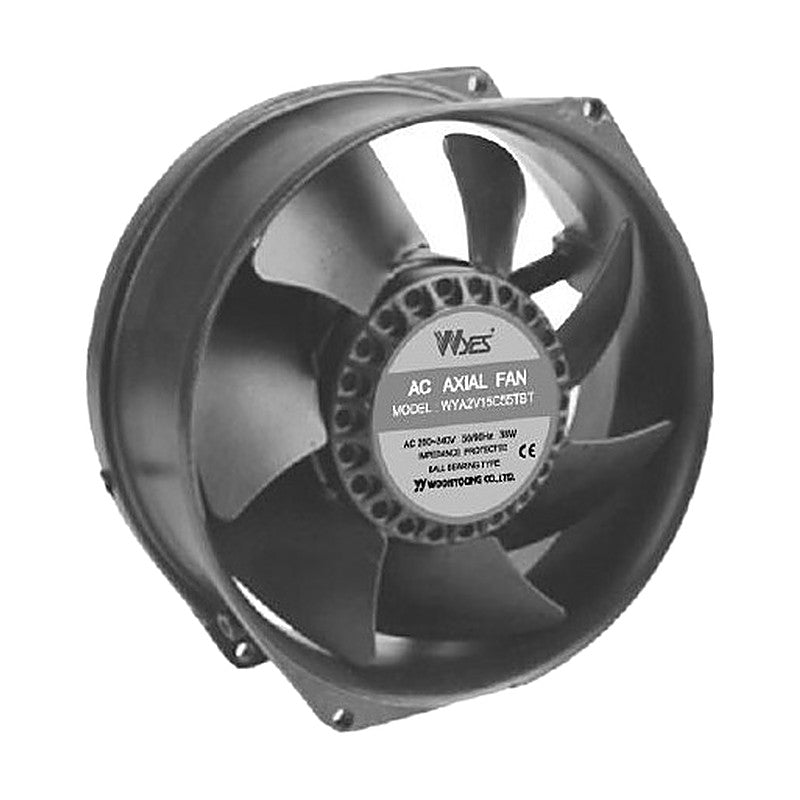

Woonyoung A15C55T Series AC Cooling Fan, 150 x 172 x 55 mm

Woonyoung A15C55T Series AC Cooling Fan, 150 x 172 x 55 mm

Square 150 x 172 x 55 mm AC axial cooling fan with ball bearings for 100-125 V or 200-240 V supplies.

Key features

  • Size 150 x 172 x 55 mm
  • Impeller: Iron
  • Aluminum alloy frame
  • Motor: Capacitor run motor
  • Lead wire: 2 wire, Teflon AWG#22 UL1332 (optional)
  • Operating temperature -10 to +105 C

Specifications

Size 150 x 172 x 55 mm
Frame Aluminum alloy
Impeller Iron
Motor Capacitor run motor
Terminals 0.5 mm
Lead wire 2 wire, Teflon AWG#22 UL1332 (optional)
Bearing Ball bearing
Operating temperature -10 to +105 C
WYA2V15C55TBL Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.25/0.2 A | Power: 46/45 W | Speed: 2700/3000 rpm | Noise: 48/52 dBA | Air flow: 324/380 m3/h (191/224 CFM) | Bearing: Ball bearing | Weight: 1200 g
Cooling FansWoonyoung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung A15C55T Series AC Cooling Fan, 150 x 172 x 55 mm

Brand Woonyoung·Cooling Fans

Available part numbers (1)

WYA2V15C55TBL

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYA2V15C55TBLVoltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.25/0.2 A | Power: 46/45 W | Speed: 2700/3000 rpm | Noise: 48/52 dBA | Air flow: 324/380 m3/h (191/224 CFM) | Bearing: Ball bearing | Weight: 1200 g
