• Woonyoung A15C51T Series AC Cooling Fan, 172 x 150 x 51 mm
1 1

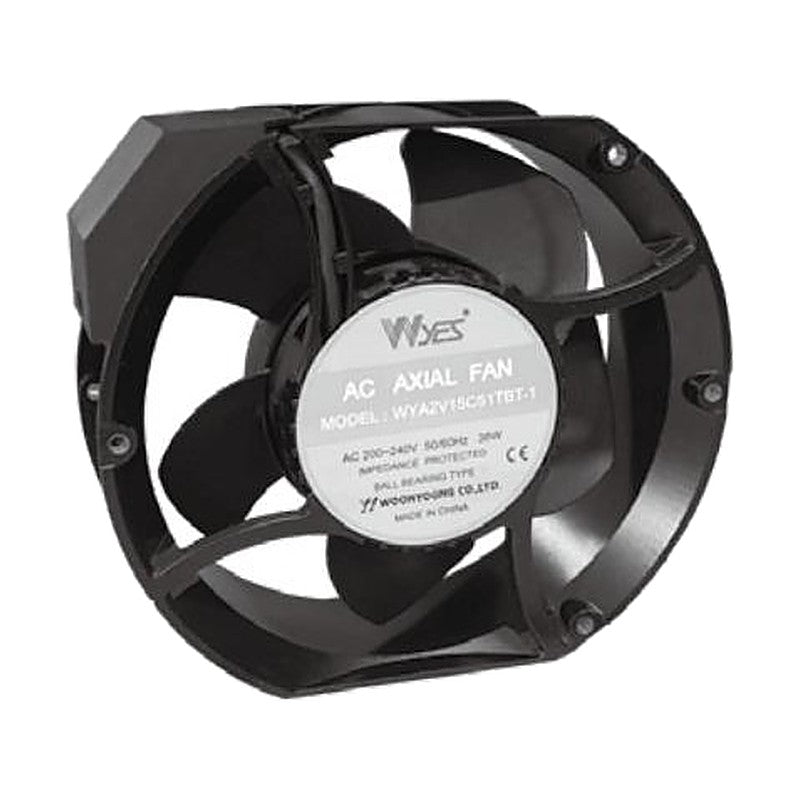

Woonyoung A15C51T Series AC Cooling Fan, 172 x 150 x 51 mm

Woonyoung A15C51T Series AC Cooling Fan, 172 x 150 x 51 mm

Square 172 x 150 x 51 mm AC axial cooling fan with ball bearings for 100-125 V or 200-240 V supplies.

Key features

  • Size 172 x 150 x 51 mm
  • Impeller: PBT thermoplastic, black, UL94-V0
  • Aluminum alloy frame
  • Motor: Shaded pole induction motor
  • Lead wire: AWG#22 UL1569 (optional)
  • Operating temperature -10 to +65 C

Specifications

Size 172 x 150 x 51 mm
Frame Aluminum alloy
Impeller PBT thermoplastic, black, UL94-V0
Motor Shaded pole induction motor
Terminals 0.5 mm
Lead wire AWG#22 UL1569 (optional)
Bearing Ball bearing
Operating temperature -10 to +65 C
Frequency 50/60 Hz
Noise 45/50 dBA
Air flow 323/399 m3/h (190/235 CFM)
Weight 820 g
WYA1V15C51TBT-1 Voltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.65/0.5 A | Power: 46/35 W | Speed: 2600/3000 rpm | Noise: 45/50 dBA | Air flow: 323/399 m3/h (190/235 CFM) | Bearing: Ball bearing | Weight: 820 g
WYA2V15C51TBT-1 Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.24/0.21 A | Power: 38/33 W | Speed: 2600/2700 rpm | Noise: 45/50 dBA | Air flow: 323/399 m3/h (190/235 CFM) | Bearing: Ball bearing | Weight: 820 g
Cooling FansWoonyoung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung A15C51T Series AC Cooling Fan, 172 x 150 x 51 mm

Brand Woonyoung·Cooling Fans

Available part numbers (2)

WYA1V15C51TBT-1, WYA2V15C51TBT-1

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYA1V15C51TBT-1Voltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.65/0.5 A | Power: 46/35 W | Speed: 2600/3000 rpm | Noise: 45/50 dBA | Air flow: 323/399 m3/h (190/235 CFM) | Bearing: Ball bearing | Weight: 820 g
WYA2V15C51TBT-1Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.24/0.21 A | Power: 38/33 W | Speed: 2600/2700 rpm | Noise: 45/50 dBA | Air flow: 323/399 m3/h (190/235 CFM) | Bearing: Ball bearing | Weight: 820 g
